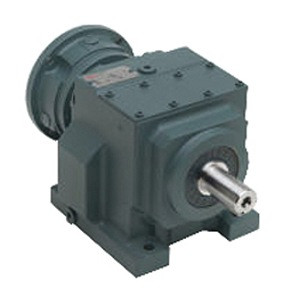

Dodge H6C21S00349 Inline Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge H6C21S00349 Inline Shaft Specifications
-
Base Included:Yes
-
Base to Center of Input Shaft:5.51 Inch / 139.954 Millimeter
-
Base to Center of Output Shaft:5.51 Inch / 139.954 Millimeter
-
Bolt Hole Diameter:0.69 Inch / 17.526 Millimeter
-
Brand:DODGE
-
Category:Inline Shafts
-
EAN:782476024468
-
Fan Cooling:No
-
Gearing:Helical
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:26.64HP
-
Input Shaft Diameter:1.375 Inch / 34.925 Millimeter
-
Input Shaft Length:0 Inch / 0 Millimeter
-
Input Type:C-Face Quill
-
Keyword String:Speed Helical
-
Long Description:Inline Reducer; QUANTIS; 4:1 Nominal Ratio; 213TC/215TC Frame; C-Face Quill Input; Shaft Output; Helical Gear; ILH Series; Direct Mounted; 1-3/8 Input Shaft Diameter
-
Manufacturer Internal Number:X
-
Manufacturer Item Number:HB682 210-CC 3.49 1-5/8 SHFT"
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:ILH
-
Maximum Overhung load value And um:1498Lbs
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:213TC/215TC
-
Mounting Method:Direct Mounted
-
Mounting Position:Floor
-
Nominal Max Input Rating:25HP
-
Nominal Max Output RPM:437.5
-
Nominal Ratio:0.167361111111111
-
Noun:Reducer
-
Other Features:Double Reduction / Grey Iron with Cast Internal Ribbing / Clamp Collar
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:501
-
Output Shaft Diameter:1.625 Inch / 41.275 Millimeter
-
Output Shaft Length:3.15 Inch / 80.01 Millimeter
-
Output Torque value plus um:3349In-Lbs
-
Output Type:Shaft
-
Overall Height:10.58 Inch / 268.732 Millimeter
-
Overall Length:18.48 Inch / 469.392 Millimeter
-
Overall Width:10.35 Inch / 262.89 Millimeter
-
Reducer Type:Inline
-
Tradename:QUANTIS
-
UNSPSC:26111538
-
Weight / Kilogram:62.142
-
Weight / LBS:115
