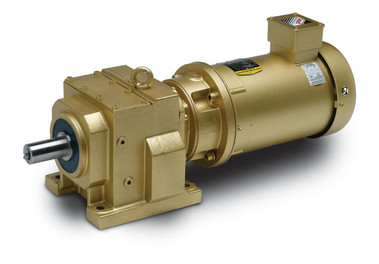

Dodge H3C56S04253G-.5G Inline Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge H3C56S04253G-.5G Inline Shaft Specifications
-
Base Included:Yes
-
Base to Center of Input Shaft:3.54 Inch / 89.916 Millimeter
-
Base to Center of Output Shaft:3.54 Inch / 89.916 Millimeter
-
Bolt Hole Diameter:0.39 Inch / 9.906 Millimeter
-
Brand:DODGE
-
Category:Inline Shafts
-
EAN:782476356811
-
Fan Cooling:No
-
Gearing:Helical
-
Harmonized Tariff Code:8501.51.20.20
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:Gear Motor
-
Input Shaft Diameter:0.625 Inch / 15.875 Millimeter
-
Input Shaft Length:0 Inch / 0 Millimeter
-
Input Type:Motor
-
Long Description:Inline Reducer; QUANTIS; 45:1 Nominal Ratio; 56C Frame; Motor Input; Shaft Output; Helical Gear; ILH Series; Direct Mounted; 5/8 Input Shaft Diameter
-
Manufacturer Item Number:ILH38 42.53 W/ BALDOR VEM3538
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:ILH
-
Maximum Overhung load value And um:881Lbs
-
Motor Enclosure if motor included:TEFC
-
Motor Frame Size if motor included:56C
-
Motor HP, KW if motor included:0.5HP
-
Motor Included:Yes
-
Motor Phase if motor included:Three
-
Motor RPMs if motor included:1800
-
Motor Voltage if motor included:208-230/460VAC
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:56C
-
Mounting Method:Direct Mounted
-
Mounting Position:Floor
-
Nominal Max Input Rating:Gear Motor
-
Nominal Max Output RPM:38.9
-
Nominal Ratio:1.87569444444444
-
Noun:Gear Unit
-
Other Features:Triple Reduction / Grey Iron with Cast Internal Ribbing
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:41
-
Output Shaft Diameter:1 Inch / 25.4 Millimeter
-
Output Shaft Length:1.97 Inch / 50.038 Millimeter
-
Output Torque value plus um:1947In-Lbs
-
Output Type:Shaft
-
Overall Height:6.635 Inch / 168.529 Millimeter
-
Overall Length:18.62 Inch / 472.948 Millimeter
-
Overall Width:8.39 Inch / 213.106 Millimeter
-
Reducer Type:Inline
-
Tradename:QUANTIS
-
UNSPSC:26111524
-
Weight / Kilogram:39.009
-
Weight / LBS:45
