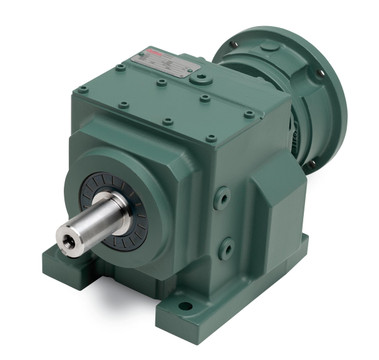

Dodge H16C21S01544 Inline Shaft

MFG Part #
H16C21S01544
SKU#
VQ20ZC

Specifications

Base IncludedYes
Base to Center of Input Shaft12.32 Inch / 312.928 Millimeter
Base to Center of Output Shaft13.98 Inch / 355.092 Millimeter
Bolt Hole Diameter1.54 Inch / 39.116 Millimeter
BrandDODGE
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Base Included:
Yes
Base to Center of Input Shaft:
12.32 Inch / 312.928 Millimeter
Base to Center of Output Shaft:
13.98 Inch / 355.092 Millimeter
Bolt Hole Diameter:
1.54 Inch / 39.116 Millimeter
Brand:
DODGE
Category:
Inline Shafts
EAN:
782476449209
Fan Cooling:
No
Gearing:
Helical
Harmonized Tariff Code:
8483.40.10.00
Housing Material And Finish:
Class 30 Gray Iron
Inch - Metric:
Inch
Input Rating value plus um:
32.58HP
Input Shaft Diameter:
1.375 Inch / 34.925 Millimeter
Input Shaft Length:
0 Inch / 0 Millimeter
Input Type:
C-Face Quill
Keyword String:
Speed Helical
Long Description:
Inline Reducer; QUANTIS; 15:1 Nominal Ratio; 213TC/215TC Frame; C-Face Quill Input; Shaft Output; Helical Gear; ILH Series; Direct Mounted; 1-3/8 Input Shaft Diameter
Manufacturer Item Number:
HB1682 210-CC 15.44 4 SHFT"
Manufacturer Name:
ABB MOTORS AND MECHANICAL INC
Manufacturer URL:
http://www.dodge-pt.com"
Manufacturer's Series:
ILH
Maximum Overhung load value And um:
17770Lbs
Motor Included:
No
Mounting Bolt Pattern footprint:
Rectangular
Mounting Frame:
213TC/215TC
Mounting Method:
Direct Mounted
Mounting Position:
Floor
Nominal Max Input Rating:
30HP
Nominal Max Output RPM:
116.7
Nominal Ratio:
0.625694444444444
Noun:
Reducer
Other Features:
Double Reduction / Grey Iron with Cast Internal Ribbing / Clamp Collar
Output Bore:
0 Inch / 0 Millimeter
Output RPM at 1750 RPM Input:
113
Output Shaft Diameter:
4 Inch / 101.6 Millimeter
Output Shaft Length:
8.27 Inch / 210.058 Millimeter
Output Torque value plus um:
18115In-Lbs
Output Type:
Shaft
Overall Height:
23.92 Inch / 607.568 Millimeter
Overall Length:
32.34 Inch / 821.436 Millimeter
Overall Width:
22.84 Inch / 580.136 Millimeter
Reducer Type:
Inline
Tradename:
QUANTIS
UNSPSC:
26111538
Weight / Kilogram:
502.126
Weight / LBS:
1011
