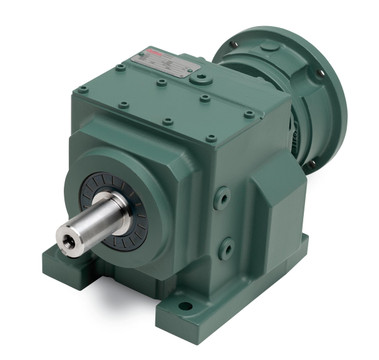

Dodge H12C21S14899 Inline Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge H12C21S14899 Inline Shaft Specifications
-
Base Included:Yes
-
Base to Center of Input Shaft:9.84 Inch / 249.936 Millimeter
-
Base to Center of Output Shaft:9.84 Inch / 249.936 Millimeter
-
Bolt Hole Diameter:1.02 Inch / 25.908 Millimeter
-
Brand:DODGE
-
Category:Inline Shafts
-
EAN:782476448554
-
Fan Cooling:No
-
Gearing:Helical
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:8.41HP
-
Input Shaft Diameter:1.375 Inch / 34.925 Millimeter
-
Input Shaft Length:0 Inch / 0 Millimeter
-
Input Type:C-Face Quill
-
Keyword String:Speed Helical
-
Long Description:Inline Reducer; QUANTIS; 150:1 Nominal Ratio; 213TC/215TC Frame; C-Face Quill Input; Shaft Output; Helical Gear; ILH Series; Direct Mounted; 1-3/8 Input Shaft Diameter
-
Manufacturer Item Number:HB1283 210-CC 148.99 2-7/8 SHFT"
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:ILH
-
Maximum Overhung load value And um:8992Lbs
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:213TC/215TC
-
Mounting Method:Direct Mounted
-
Mounting Position:Floor
-
Nominal Max Input Rating:7.5HP
-
Nominal Max Output RPM:11.7
-
Nominal Ratio:6.25069444444444
-
Noun:Reducer
-
Other Features:Triple Reduction / Grey Iron with Cast Internal Ribbing / Clamp Collar
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:12
-
Output Shaft Diameter:2.875 Inch / 73.025 Millimeter
-
Output Shaft Length:5.51 Inch / 139.954 Millimeter
-
Output Torque value plus um:45140In-Lbs
-
Output Type:Shaft
-
Overall Height:18.08 Inch / 459.232 Millimeter
-
Overall Length:27.06 Inch / 687.324 Millimeter
-
Overall Width:18.19 Inch / 462.026 Millimeter
-
Reducer Type:Inline
-
Tradename:QUANTIS
-
UNSPSC:26111538
-
Weight / Kilogram:239.497
-
Weight / LBS:471
