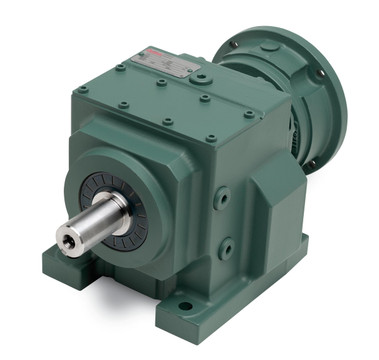

Dodge H10C28S01719 Inline Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge H10C28S01719 Inline Shaft Specifications
-
Base Included:Yes
-
Base to Center of Input Shaft:8.86 Inch / 225.044 Millimeter
-
Base to Center of Output Shaft:8.86 Inch / 225.044 Millimeter
-
Bolt Hole Diameter:0.87 Inch / 22.098 Millimeter
-
Brand:DODGE
-
Category:Inline Shafts
-
EAN:782476024789
-
Fan Cooling:No
-
Gearing:Helical
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:44.32HP
-
Input Shaft Diameter:1.875 Inch / 47.625 Millimeter
-
Input Shaft Length:0 Inch / 0 Millimeter
-
Input Type:C-Face Quill
-
Keyword String:Speed Helical
-
Long Description:Inline Reducer; QUANTIS; 20:1 Nominal Ratio; 284TC/286TC Frame; C-Face Quill Input; Shaft Output; Helical Gear; ILH Series; Direct Mounted; 1-7/8 Input Shaft Diameter
-
Manufacturer Item Number:HB1082 280-CC 17.19 2-3/8 SHFT"
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:ILH
-
Maximum Overhung load value And um:4037Lbs
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:284TC/286TC
-
Mounting Method:Direct Mounted
-
Mounting Position:Floor
-
Nominal Max Input Rating:40HP
-
Nominal Max Output RPM:87.5
-
Nominal Ratio:0.834027777777778
-
Noun:Reducer
-
Other Features:Double Reduction / Grey Iron with Cast Internal Ribbing / Clamp Collar
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:102
-
Output Shaft Diameter:2.375 Inch / 60.325 Millimeter
-
Output Shaft Length:4.72 Inch / 119.888 Millimeter
-
Output Torque value plus um:27438In-Lbs
-
Output Type:Shaft
-
Overall Height:16.2 Inch / 411.48 Millimeter
-
Overall Length:23.58 Inch / 598.932 Millimeter
-
Overall Width:16.14 Inch / 409.956 Millimeter
-
Reducer Type:Inline
-
Tradename:QUANTIS
-
UNSPSC:26111538
-
Weight / Kilogram:179.169
-
Weight / LBS:330
