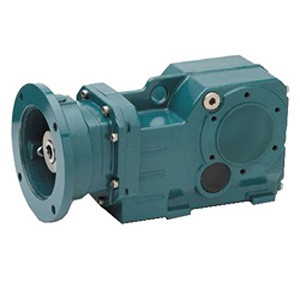

Dodge B10C18S16351 Right Angle Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge B10C18S16351 Right Angle Shaft Specifications
-
Base Included:Yes
-
Base to Center of Input Shaft:7.84 Inch / 199.136 Millimeter
-
Base to Center of Output Shaft:8.35 Inch / 212.09 Millimeter
-
Bolt Hole Diameter:0.87 Inch / 22.098 Millimeter
-
Brand:DODGE
-
Category:Right Angle Shafts
-
Center Distance:0.51 Inch / 12.954 Millimeter
-
EAN:782476444754
-
Fan Cooling:No
-
Gearing:Helical-Bevel
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:4.51HP
-
Input Shaft Diameter:1.125 Inch / 28.575 Millimeter
-
Input Shaft Length:0 Inch / 0 Millimeter
-
Input Type:C-Face Quill
-
Keyword String:Speed Helical / Bevel
-
Long Description:Right Angle Reducer; QUANTIS; 180 To 1 Nominal Ratio; 182TC/184TC Frame; C-Face Input; Left Hand Output; Helical-Bevel Gear; RHB Series; Foot Mounted; 1-1/8 Input Shaft Diameter
-
Manufacturer Item Number:BB1083 180-CC 163.51 2-3/8 S SHF
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:RHB
-
Maximum Overhung load value And um:5586Lbs
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Square
-
Mounting Frame:182TC/184TC
-
Mounting Method:Direct Mounted
-
Mounting Position:Floor
-
Nominal Center Distance:0.51 Inch / 12.95 Millimeter
-
Nominal Max Input Rating:3HP
-
Nominal Max Output RPM:9.7
-
Nominal Ratio:7.50069444444444
-
Noun:Reducer
-
Other Features:Triple Reduction / Grey Iron with Cast Internal Ribbing / Clamp Collar
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:11
-
Output Shaft Diameter:2.375 Inch / 60.325 Millimeter
-
Output Shaft Length:4.72 Inch / 119.888 Millimeter
-
Output Torque:26568In-Lbs
-
Output Type:Left Hand
-
Overall Height:13.58 Inch / 344.932 Millimeter
-
Overall Length:22.64 Inch / 575.056 Millimeter
-
Overall Width:14.175 Inch / 360.045 Millimeter
-
Reducer Type:Right Angle
-
Tradename:QUANTIS
-
UNSPSC:26111538
-
Weight / Kilogram:116.68
-
Weight / LBS:257
