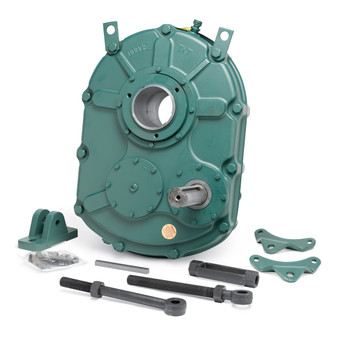

Dodge 912001 Parallel Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 912001 Parallel Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:0 Inch / 0 Millimeter
-
Base to Center of Output Shaft:0 Inch / 0 Millimeter
-
Bolt Hole Diameter:0 Inch / 0 Millimeter
-
Brand:DODGE
-
Category:Parallel Shafts
-
Center Distance:21.66 Inch / 550.164 Millimeter
-
EAN:782475214525
-
Fan Cooling:No
-
Gearing:Helical
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Cast Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:300HP
-
Input Shaft Diameter:2.688 Inch / 68.275 Millimeter
-
Input Shaft Length:8.67 Inch / 220.218 Millimeter
-
Input Type:Shaft
-
Keyword String:Speed Helical
-
Long Description:Parallel Reducer; TORQUE-ARM II; 25:1 Nominal Ratio; Shaft Input; Bushed Output; Helical Gear; TA12608H Series; Shaft Mounted; 2-11/16 Input Shaft Diameter
-
Manufacturer Internal Number:912001
-
Manufacturer Item Number:TA12608H25 TA TAPER BUSH REDUCER
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:TA12608H
-
Motor Included:No
-
Mounting Frame:Not Applicable
-
Mounting Method:Shaft Mounted
-
Nominal Center Distance:21.66 Inch / 550.16 Millimeter
-
Nominal Max Input Rating:300HP
-
Nominal Max Output RPM:70
-
Nominal Ratio:1.04236111111111
-
Noun:Reducer
-
Other Features:Double Reduction / With Bushing / Heavy Duty
-
Output Bore Range:4-15/16 To 7 Inch / 125.413 To 177.8 Millimeter
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:0
-
Output Shaft Diameter:0 Inch / 0 Millimeter
-
Output Shaft Length:0 Inch / 0 Millimeter
-
Output Type:Bushed
-
Overall Height:43.74 Inch / 1,110.996 Millimeter
-
Overall Length:26.84 Inch / 681.736 Millimeter
-
Overall Width:30.11 Inch / 764.794 Millimeter
-
Reducer Type:Parallel
-
Tradename:TORQUE-ARM II
-
UNSPSC:26111538
-
Weight / Kilogram:633.33
-
Weight / LBS:1395
