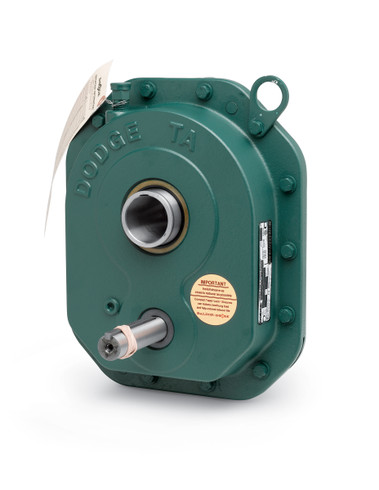

Dodge 903146 Parallel Shaft

Specs

Base Included:

No

Base to Center of Input Shaft:

0 Inch / 0 Millimeter

Base to Center of Output Shaft:

0 Inch / 0 Millimeter

Bolt Hole Diameter:

0 Inch / 0 Millimeter

Brand:

DODGE

Category:

Parallel Shafts

Center Distance:

6.02 Inch / 152.908 Millimeter

EAN:

782475731541

Fan Cooling:

No

Gearing:

Helical

Harmonized Tariff Code:

8483.40.10.00

Housing Material And Finish:

Class 30 Cast Iron

Inch - Metric:

Inch

Input Rating value plus um:

10HP

Input Shaft Diameter:

1.375 Inch / 34.925 Millimeter

Input Shaft Length:

4.94 Inch / 125.476 Millimeter

Input Type:

Shaft

Keyword String:

Speed Helical

Long Description:

Parallel Reducer; TORQUE-ARM II; 25:1 Nominal Ratio; Shaft Input; Hollow Shaft Output; Helical Gear; TA3203H Series; Shaft Mounted; 1-3/8 Input Shaft Diameter

Manufacturer Internal Number:

903146

Manufacturer Item Number:

TA3203H25S X 2-7/16 STR BR REDR

Manufacturer Name:

ABB MOTORS AND MECHANICAL INC

Manufacturer URL:

http://www.dodge-pt.com"

Manufacturer's Series:

TA3203H

Motor Included:

No

Mounting Frame:

Not Applicable

Mounting Method:

Shaft Mounted

Nominal Center Distance:

6.02 Inch / 152.91 Millimeter

Nominal Max Input Rating:

10HP

Nominal Max Output RPM:

70

Nominal Ratio:

1.04236111111111

Noun:

Reducer

Other Features:

Single and Double Reduction / Heavy Duty

Output Bore:

2.438 Inch / 61.925 Millimeter

Output RPM at 1750 RPM Input:

0

Output Shaft Diameter:

0 Inch / 0 Millimeter

Output Shaft Length:

0 Inch / 0 Millimeter

Output Type:

Hollow Shaft

Overall Height:

16.61 Inch / 421.894 Millimeter

Overall Length:

12.79 Inch / 324.866 Millimeter

Overall Width:

13.96 Inch / 354.584 Millimeter

Reducer Type:

Parallel

Tradename:

TORQUE-ARM II

UNSPSC:

26111538

Weight / Kilogram:

51.21

Weight / LBS:

112.8
