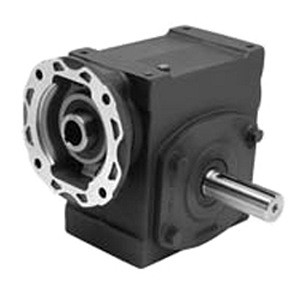

Dodge 47Q25R21 Right Angle Shaft

Specs

Base Included:

No

Base to Center of Input Shaft:

10.06 Inch / 255.524 Millimeter

Base to Center of Output Shaft:

5.31 Inch / 134.874 Millimeter

Bolt Hole Diameter:

0.625 Inch / 15.875 Millimeter

Brand:

DODGE

Category:

Right Angle Shafts

Center Distance:

4.75 Inch / 120.65 Millimeter

EAN:

782475766635

Fan Cooling:

No

Gearing:

Worm

Harmonized Tariff Code:

8483.40.10.00

Housing Material And Finish:

Class 30 Gray Iron

Inch - Metric:

Inch

Input Rating value plus um:

8.76HP

Input Shaft Diameter:

1.375 Inch / 34.925 Millimeter

Input Shaft Length:

0 Inch / 0 Millimeter

Input Type:

C-Face Quill

Keyword String:

Speed Worm

Long Description:

Right Angle Reducer; TIGEAR-2; 25 To 1 Nominal Ratio; 213TC/215TC Frame; Quill Input; Right Hand Output; Worm Gear; 47 Series; Base Mounted; 1-3/8 Input Shaft Diameter

Manufacturer Internal Number:

47Q25R21

Manufacturer Item Number:

47Q25R21 TIGEAR-2 REDUCER

Manufacturer Name:

ABB MOTORS AND MECHANICAL INC

Manufacturer URL:

http://www.dodge-pt.com"

Manufacturer's Series:

47

Maximum Overhung load value And um:

5600Lbs

Motor Included:

No

Mounting Bolt Pattern footprint:

Rectangular

Mounting Frame:

213TC/215TC

Mounting Method:

Direct Mounted

Mounting Position:

Floor / Wall / Ceiling

Nominal Center Distance:

4.75 Inch / 120.65 Millimeter

Nominal Max Input Rating:

7.5HP

Nominal Max Output RPM:

70

Nominal Ratio:

1.04236111111111

Noun:

Reducer

Other Features:

Single Reduction / Totally Enclosed Non-Vented Sealing

Output Bore:

0 Inch / 0 Millimeter

Output RPM at 1750 RPM Input:

70

Output Shaft Diameter:

2 Inch / 50.8 Millimeter

Output Shaft Length:

4.01 Inch / 101.854 Millimeter

Output Torque:

6410In-Lbs

Output Type:

Right Hand

Overall Height:

14.56 Inch / 369.824 Millimeter

Overall Length:

15.7 Inch / 398.78 Millimeter

Overall Width:

13.87 Inch / 352.298 Millimeter

Reducer Type:

Right Angle

Tradename:

TIGEAR-2

UNSPSC:

26111537

Weight / Kilogram:

95.34

Weight / LBS:

210
