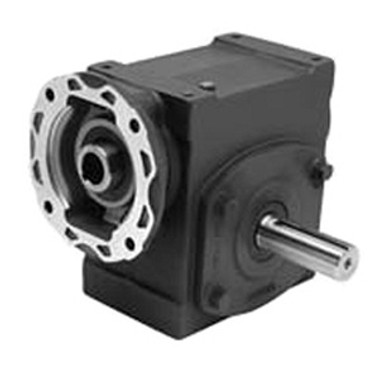

Dodge 47Q10LR25 Right Angle Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 47Q10LR25 Right Angle Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:10.06 Inch / 255.524 Millimeter
-
Base to Center of Output Shaft:5.31 Inch / 134.874 Millimeter
-
Bolt Hole Diameter:0.625 Inch / 15.875 Millimeter
-
Brand:DODGE
-
Category:Right Angle Shafts
-
Center Distance:4.75 Inch / 120.65 Millimeter
-
EAN:782475766765
-
Fan Cooling:No
-
Gearing:Worm
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:19.27HP
-
Input Shaft Diameter:1.625 Inch / 41.275 Millimeter
-
Input Shaft Length:0 Inch / 0 Millimeter
-
Input Type:C-Face Quill
-
Keyword String:Speed Worm
-
Long Description:Right Angle Reducer; TIGEAR-2; 10 To 1 Nominal Ratio; 254TC/256TC Frame; Quill Input; Right and Left Hand Output; Worm Gear; 47 Series; Base Mounted; 1-5/8 Input Shaft Diameter
-
Manufacturer Internal Number:47Q10LR25
-
Manufacturer Item Number:47Q10LR25 TIGEAR-2 REDUCER
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:47
-
Maximum Overhung load value And um:5600Lbs
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:254TC/256TC
-
Mounting Method:Direct Mounted
-
Mounting Position:Floor / Wall / Ceiling
-
Nominal Center Distance:4.75 Inch / 120.65 Millimeter
-
Nominal Max Input Rating:15HP
-
Nominal Max Output RPM:175
-
Nominal Ratio:0.417361111111111
-
Noun:Reducer
-
Other Features:Single Reduction / Totally Enclosed Non-Vented Sealing
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:175
-
Output Shaft Diameter:2 Inch / 50.8 Millimeter
-
Output Shaft Length:4.01 Inch / 101.854 Millimeter
-
Output Torque:6390In-Lbs
-
Output Type:Right and Left Hand
-
Overall Height:14.56 Inch / 369.824 Millimeter
-
Overall Length:16.98 Inch / 431.292 Millimeter
-
Overall Width:18.12 Inch / 460.248 Millimeter
-
Reducer Type:Right Angle
-
Tradename:TIGEAR-2
-
UNSPSC:26111537
-
Weight / Kilogram:95.34
-
Weight / LBS:210
