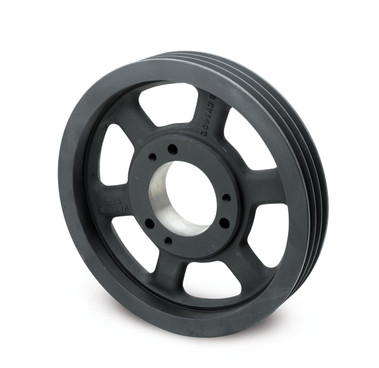

Dodge 455700 Sheaves - Fixed Pitch

Specs

Belt Series:

A / B

Belt Width Maximum:

0.656 Inch / 16.662 Millimeter

Belt Width Minimum:

0.5 Inch / 12.7 Millimeter

Bore:

0 Inch / 0 Millimeter

Brand:

DODGE

Bushing Bore Range:

1/2 To 2-15/16 Inch / 28 To 60 Millimeter

Bushing Size:

SF

Category:

Sheaves - Fixed Pitch

EAN:

782475157716

Harmonized Tariff Code:

8483.50.90.40

Inch - Metric:

Inch

Keyway Yes/No:

Yes

Keyword String:

Transmission

Long Description:

5 Grooves; 13.95 Outside Diameter

Manufacturer Internal Number:

455700

Manufacturer Item Number:

5B136-SF SHEAVE

Manufacturer Name:

ABB MOTORS AND MECHANICAL INC

Manufacturer URL:

http://www.dodge-pt.com"

Max Bore:

0

Minimum Plain Bore:

No

Mounting Method:

Bushed

Noun:

Pulley

Number of Grooves:

5

Other Features:

QD Bushing / Arm Style

Outside Diameter:

13.95 Inch / 354.33 Millimeter

Pitch Diameter Maximum:

13.6 Inch / 345.44 Millimeter

Pitch Diameter Minimum:

13.2 Inch / 335.28 Millimeter

UNSPSC:

26111806

Weight / Kilogram:

21.824

Weight / LBS:

37
