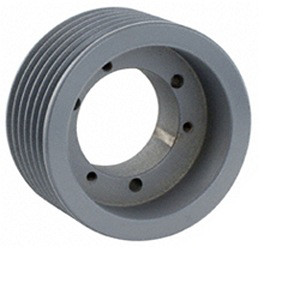

Dodge 455205 Sheaves - Fixed Pitch

Specs

Belt Series:

3V

Belt Width Maximum:

0.375 Inch / 9.525 Millimeter

Belt Width Minimum:

0.375 Inch / 9.525 Millimeter

Bore:

0 Inch / 0 Millimeter

Brand:

DODGE

Bushing Bore Range:

1/2 To 2-5/8 Inch / 14 To 60 Millimeter

Bushing Size:

SK

Category:

Sheaves - Fixed Pitch

EAN:

782475152810

Harmonized Tariff Code:

8483.50.90.40

Inch - Metric:

Inch

Keyway Yes/No:

Yes

Keyword String:

Transmission

Long Description:

6 Grooves; 6 Outside Diameter

Manufacturer Item Number:

6-3V6.00

Manufacturer Name:

ABB MOTORS AND MECHANICAL INC

Manufacturer URL:

http://www.maskapulleys.com"

Max Bore:

0

Minimum Plain Bore:

No

Mounting Method:

Bushed

Noun:

Pulley

Number of Grooves:

6

Other Features:

QD Bushing / Solid Style / Bore Size 2-9/16 and 2-5/8 has No Keyway

Outside Diameter:

6 Inch / 152.4 Millimeter

Pitch Diameter Maximum:

5.95 Inch / 151.13 Millimeter

Pitch Diameter Minimum:

5.95 Inch / 151.13 Millimeter

UNSPSC:

26111806

Weight / Kilogram:

4.608

Weight / LBS:

9.7
