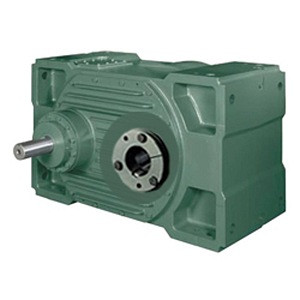

Dodge 449440 Parallel Shaft

Specs

Base Included:

Yes

Base to Center of Input Shaft:

13.88 Inch / 352.552 Millimeter

Base to Center of Output Shaft:

13.88 Inch / 352.552 Millimeter

Bolt Hole Diameter:

1.3 Inch / 33.02 Millimeter

Brand:

DODGE

Category:

Parallel Shafts

Center Distance:

22.2 Inch / 563.88 Millimeter

EAN:

782476470548

Fan Cooling:

No

Gearing:

Helical or Helical-Bevel

Harmonized Tariff Code:

8483.40.10.00

Housing Material And Finish:

Class 30 Gray Iron

Inch - Metric:

Inch

Input Rating value plus um:

689HP

Input Shaft Diameter:

2.363 Inch / 60.02 Millimeter

Input Shaft Length:

6.55 Inch / 166.37 Millimeter

Input Type:

Shaft

Keyword String:

Speed Helical / Bevel

Long Description:

Parallel Reducer; MAGNAGEAR; 10:1 Nominal Ratio; Shaft Input; Bushed Output; Helical or Helical-Bevel Gear; G285 Series; Direct Mounted; 2.363 Input Shaft Diameter

Manufacturer Internal Number:

449440

Manufacturer Item Number:

MAGNAGEAR G285HPH2-11.2

Manufacturer Name:

ABB MOTORS AND MECHANICAL INC

Manufacturer URL:

http://www.dodge-pt.com"

Manufacturer's Series:

G285

Motor Included:

No

Mounting Bolt Pattern footprint:

Rectangular

Mounting Frame:

Not Applicable

Mounting Method:

Direct Mounted

Mounting Position:

Universal

Nominal Center Distance:

22.2 Inch / 563.88 Millimeter

Nominal Max Input Rating:

600HP

Nominal Max Output RPM:

175

Nominal Ratio:

0.417361111111111

Noun:

Reducer

Other Features:

Double Reduction / With Bushing / With Mounting Pads / Optional Shaft Driven Fan

Output Bore Range:

3-15/16 To 6 Inch / 100.013 To 152.4 Millimeter

Output Bore:

0 Inch / 0 Millimeter

Output RPM at 1750 RPM Input:

156

Output Shaft Diameter:

0 Inch / 0 Millimeter

Output Shaft Length:

0 Inch / 0 Millimeter

Output Torque value plus um:

272000In-Lbs

Output Type:

Bushed

Overall Height:

27.76 Inch / 705.104 Millimeter

Overall Length:

26.82 Inch / 681.228 Millimeter

Overall Width:

52.55 Inch / 1,334.77 Millimeter

Reducer Type:

Parallel

Tradename:

MAGNAGEAR

UNSPSC:

26111538 / 26111542

Weight / Kilogram:

1024.22

Weight / LBS:

2256
