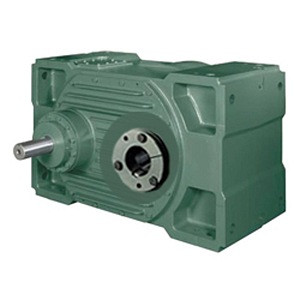

Dodge 449438 Parallel Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 449438 Parallel Shaft Specifications
-
Base Included:Yes
-
Base to Center of Input Shaft:13.88 Inch / 352.552 Millimeter
-
Base to Center of Output Shaft:13.88 Inch / 352.552 Millimeter
-
Bolt Hole Diameter:1.3 Inch / 33.02 Millimeter
-
Brand:DODGE
-
Category:Parallel Shafts
-
Center Distance:22.2 Inch / 563.88 Millimeter
-
EAN:782476470395
-
Fan Cooling:No
-
Gearing:Helical or Helical-Bevel
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:836HP
-
Input Shaft Diameter:2.363 Inch / 60.02 Millimeter
-
Input Shaft Length:6.55 Inch / 166.37 Millimeter
-
Input Type:Shaft
-
Keyword String:Speed Helical / Bevel
-
Long Description:Parallel Reducer; MAGNAGEAR; 9:1 Nominal Ratio; Shaft Input; Bushed Output; Helical or Helical-Bevel Gear; G285 Series; Direct Mounted; 2.363 Input Shaft Diameter
-
Manufacturer Internal Number:449438
-
Manufacturer Item Number:MAGNAGEAR G285HPH2-9
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:G285
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:Not Applicable
-
Mounting Method:Direct Mounted
-
Mounting Position:Universal
-
Nominal Center Distance:22.2 Inch / 563.88 Millimeter
-
Nominal Max Input Rating:800HP
-
Nominal Max Output RPM:194.4
-
Nominal Ratio:0.375694444444444
-
Noun:Reducer
-
Other Features:Double Reduction / With Bushing / With Mounting Pads / Optional Shaft Driven Fan
-
Output Bore Range:3-15/16 To 6 Inch / 100.013 To 152.4 Millimeter
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:194
-
Output Shaft Diameter:0 Inch / 0 Millimeter
-
Output Shaft Length:0 Inch / 0 Millimeter
-
Output Torque value plus um:266000In-Lbs
-
Output Type:Bushed
-
Overall Height:27.76 Inch / 705.104 Millimeter
-
Overall Length:26.82 Inch / 681.228 Millimeter
-
Overall Width:52.55 Inch / 1,334.77 Millimeter
-
Reducer Type:Parallel
-
Tradename:MAGNAGEAR
-
UNSPSC:26111538 / 26111542
-
Weight / Kilogram:1024.22
-
Weight / LBS:2256
