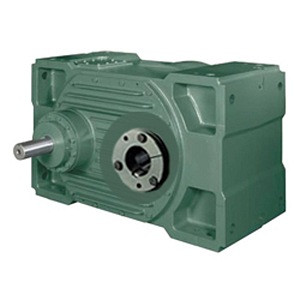

Dodge 449309 Parallel Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 449309 Parallel Shaft Specifications
-
Base Included:Yes
-
Base to Center of Input Shaft:12.75 Inch / 323.85 Millimeter
-
Base to Center of Output Shaft:12.75 Inch / 323.85 Millimeter
-
Bolt Hole Diameter:1.024 Inch / 26.01 Millimeter
-
Brand:DODGE
-
Category:Parallel Shafts
-
Center Distance:20.31 Inch / 515.874 Millimeter
-
EAN:782476469610
-
Fan Cooling:No
-
Gearing:Helical or Helical-Bevel
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:427HP
-
Input Shaft Diameter:2.166 Inch / 55.016 Millimeter
-
Input Shaft Length:5.91 Inch / 150.114 Millimeter
-
Input Type:Shaft
-
Keyword String:Speed Helical / Bevel
-
Long Description:Parallel Reducer; MAGNAGEAR; 15:1 Nominal Ratio; Shaft Input; Bushed Output; Helical or Helical-Bevel Gear; G210 Series; Direct Mounted; 2.166 Input Shaft Diameter
-
Manufacturer Internal Number:449309
-
Manufacturer Item Number:MAGNAGEAR G210HPH2-12.5 BS
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:G210
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:Not Applicable
-
Mounting Method:Direct Mounted
-
Mounting Position:Universal
-
Nominal Center Distance:20.31 Inch / 515.87 Millimeter
-
Nominal Max Input Rating:400HP
-
Nominal Max Output RPM:116.7
-
Nominal Ratio:0.625694444444444
-
Noun:Reducer
-
Other Features:Double Reduction / With Bushing / With Mounting Pads / Optional Shaft Driven Fan / With Backstop
-
Output Bore Range:3-7/16 To 4-15/16 Inch / 87.313 To 125.413 Millimeter
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:140
-
Output Shaft Diameter:0 Inch / 0 Millimeter
-
Output Shaft Length:0 Inch / 0 Millimeter
-
Output Torque value plus um:196000In-Lbs
-
Output Type:Bushed
-
Overall Height:25.5 Inch / 647.7 Millimeter
-
Overall Length:24.93 Inch / 633.222 Millimeter
-
Overall Width:49.78 Inch / 1,264.412 Millimeter
-
Reducer Type:Parallel
-
Tradename:MAGNAGEAR
-
UNSPSC:26111538 / 26111542
-
Weight / Kilogram:933.88
-
Weight / LBS:2057
