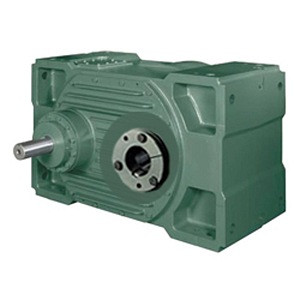

Dodge 449111 Parallel Shaft

Specs

Base Included:

Yes

Base to Center of Input Shaft:

11.5 Inch / 292.1 Millimeter

Base to Center of Output Shaft:

11.5 Inch / 292.1 Millimeter

Bolt Hole Diameter:

1.024 Inch / 26.01 Millimeter

Brand:

DODGE

Category:

Parallel Shafts

Center Distance:

23.27 Inch / 591.058 Millimeter

EAN:

782476467043

Fan Cooling:

No

Gearing:

Helical or Helical-Bevel

Harmonized Tariff Code:

8483.40.10.00

Housing Material And Finish:

Class 30 Gray Iron

Inch - Metric:

Inch

Input Rating value plus um:

117HP

Input Shaft Diameter:

1.772 Inch / 45.009 Millimeter

Input Shaft Length:

5.14 Inch / 130.556 Millimeter

Input Type:

Shaft

Keyword String:

Speed Helical / Bevel

Long Description:

Parallel Reducer; MAGNAGEAR; 35:1 Nominal Ratio; Shaft Input; Bushed Output; Helical or Helical-Bevel Gear; G150 Series; Direct Mounted; 1.772 Input Shaft Diameter

Manufacturer Internal Number:

449111

Manufacturer Item Number:

MAGNAGEAR G150HPH3-35.5

Manufacturer Name:

ABB MOTORS AND MECHANICAL INC

Manufacturer URL:

http://www.dodge-pt.com"

Manufacturer's Series:

G150

Motor Included:

No

Mounting Bolt Pattern footprint:

Rectangular

Mounting Frame:

Not Applicable

Mounting Method:

Direct Mounted

Mounting Position:

Universal

Nominal Center Distance:

23.27 Inch / 591.06 Millimeter

Nominal Max Input Rating:

100HP

Nominal Max Output RPM:

50

Nominal Ratio:

1.45902777777778

Noun:

Reducer

Other Features:

Triple Reduction / With Bushing / With Mounting Pads / Optional Shaft Driven Fan

Output Bore Range:

2-15/16 To 4-7/16 Inch / 74.613 To 112.713 Millimeter

Output Bore:

0 Inch / 0 Millimeter

Output RPM at 1750 RPM Input:

49

Output Shaft Diameter:

0 Inch / 0 Millimeter

Output Shaft Length:

0 Inch / 0 Millimeter

Output Torque value plus um:

157000In-Lbs

Output Type:

Bushed

Overall Height:

23 Inch / 584.2 Millimeter

Overall Length:

22.83 Inch / 579.882 Millimeter

Overall Width:

43.81 Inch / 1,112.774 Millimeter

Reducer Type:

Parallel

Tradename:

MAGNAGEAR

UNSPSC:

26111538 / 26111542

Weight / Kilogram:

723.22

Weight / LBS:

1593
