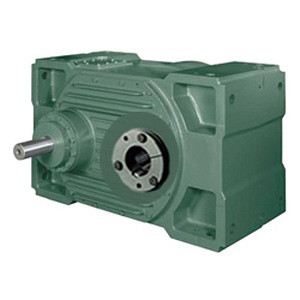

Dodge 449004 Parallel Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 449004 Parallel Shaft Specifications
-
Base Included:Yes
-
Base to Center of Input Shaft:10.25 Inch / 260.35 Millimeter
-
Base to Center of Output Shaft:10.25 Inch / 260.35 Millimeter
-
Bolt Hole Diameter:1.024 Inch / 26.01 Millimeter
-
Brand:DODGE
-
Category:Parallel Shafts
-
Center Distance:15.82 Inch / 401.828 Millimeter
-
EAN:782476460518
-
Fan Cooling:No
-
Gearing:Helical or Helical-Bevel
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:177HP
-
Input Shaft Diameter:1.772 Inch / 45.009 Millimeter
-
Input Shaft Length:3.82 Inch / 97.028 Millimeter
-
Input Type:Shaft
-
Keyword String:Speed Helical / Bevel
-
Long Description:Parallel Reducer; MAGNAGEAR; 15:1 Nominal Ratio; Shaft Input; Bushed Output; Helical or Helical-Bevel Gear; G100 Series; Direct Mounted; 1.772 Input Shaft Diameter
-
Manufacturer Internal Number:449004
-
Manufacturer Item Number:MAGNAGEAR G100HPH2-14
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:G100
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:Not Applicable
-
Mounting Method:Direct Mounted
-
Mounting Position:Universal
-
Nominal Center Distance:15.82 Inch / 401.83 Millimeter
-
Nominal Max Input Rating:150HP
-
Nominal Max Output RPM:116.7
-
Nominal Ratio:0.625694444444444
-
Noun:Reducer
-
Other Features:Double Reduction / With Bushing / With Mounting Pads / Optional Shaft Driven Fan
-
Output Bore Range:2-3/16 To 3-7/16 Inch / 55.563 To 87.313 Millimeter
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:125
-
Output Shaft Diameter:0 Inch / 0 Millimeter
-
Output Shaft Length:0 Inch / 0 Millimeter
-
Output Torque value plus um:90000In-Lbs
-
Output Type:Bushed
-
Overall Height:20.5 Inch / 520.7 Millimeter
-
Overall Length:20.115 Inch / 510.921 Millimeter
-
Overall Width:39.85 Inch / 1,012.19 Millimeter
-
Reducer Type:Parallel
-
Tradename:MAGNAGEAR
-
UNSPSC:26111538 / 26111542
-
Weight / Kilogram:500.76
-
Weight / LBS:1103
