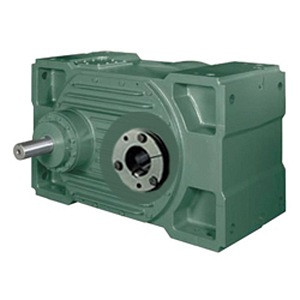

Dodge 449000 Parallel Shaft

Specs

Base Included:

Yes

Base to Center of Input Shaft:

10.25 Inch / 260.35 Millimeter

Base to Center of Output Shaft:

10.25 Inch / 260.35 Millimeter

Bolt Hole Diameter:

1.024 Inch / 26.01 Millimeter

Brand:

DODGE

Category:

Parallel Shafts

Center Distance:

15.82 Inch / 401.828 Millimeter

EAN:

782476460471

Fan Cooling:

No

Gearing:

Helical or Helical-Bevel

Harmonized Tariff Code:

8483.40.10.00

Housing Material And Finish:

Class 30 Gray Iron

Inch - Metric:

Inch

Input Rating value plus um:

263HP

Input Shaft Diameter:

1.772 Inch / 45.009 Millimeter

Input Shaft Length:

3.82 Inch / 97.028 Millimeter

Input Type:

Shaft

Keyword String:

Speed Helical / Bevel

Long Description:

Parallel Reducer; MAGNAGEAR; 9:1 Nominal Ratio; Shaft Input; Bushed Output; Helical or Helical-Bevel Gear; G100 Series; Direct Mounted; 1.772 Input Shaft Diameter

Manufacturer Internal Number:

449000

Manufacturer Item Number:

MAGNAGEAR G100HPH2-9

Manufacturer Name:

ABB MOTORS AND MECHANICAL INC

Manufacturer URL:

http://www.dodge-pt.com"

Manufacturer's Series:

G100

Motor Included:

No

Mounting Bolt Pattern footprint:

Rectangular

Mounting Frame:

Not Applicable

Mounting Method:

Direct Mounted

Mounting Position:

Universal

Nominal Center Distance:

15.82 Inch / 401.83 Millimeter

Nominal Max Input Rating:

250HP

Nominal Max Output RPM:

194.4

Nominal Ratio:

0.375694444444444

Noun:

Reducer

Other Features:

Double Reduction / With Bushing / With Mounting Pads / Optional Shaft Driven Fan

Output Bore Range:

2-3/16 To 3-7/16 Inch / 55.563 To 87.313 Millimeter

Output Bore:

0 Inch / 0 Millimeter

Output RPM at 1750 RPM Input:

194

Output Shaft Diameter:

0 Inch / 0 Millimeter

Output Shaft Length:

0 Inch / 0 Millimeter

Output Torque value plus um:

86000In-Lbs

Output Type:

Bushed

Overall Height:

20.5 Inch / 520.7 Millimeter

Overall Length:

20.115 Inch / 510.921 Millimeter

Overall Width:

39.85 Inch / 1,012.19 Millimeter

Reducer Type:

Parallel

Tradename:

MAGNAGEAR

UNSPSC:

26111538 / 26111542

Weight / Kilogram:

500.76

Weight / LBS:

1103
