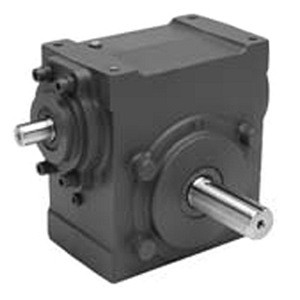

Dodge 40S10LR Right Angle Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 40S10LR Right Angle Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:8.44 Inch / 214.376 Millimeter
-
Base to Center of Output Shaft:4.44 Inch / 112.776 Millimeter
-
Bolt Hole Diameter:0.625 Inch / 15.875 Millimeter
-
Brand:DODGE
-
Category:Right Angle Shafts
-
Center Distance:4 Inch / 101.6 Millimeter
-
EAN:782475754304
-
Fan Cooling:No
-
Gearing:Worm
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:13.33HP
-
Input Shaft Diameter:1.125 Inch / 28.575 Millimeter
-
Input Shaft Length:1.81 Inch / 45.974 Millimeter
-
Input Type:Shaft
-
Keyword String:Speed Worm
-
Long Description:Right Angle Reducer; TIGEAR-2; 10 To 1 Nominal Ratio; Shaft Input; Right and Left Hand Output; Worm Gear; 40 Series; Base Mounted; 1-1/8 Input Shaft Diameter
-
Manufacturer Internal Number:40S10LR
-
Manufacturer Item Number:40S10LR TIGEAR-2 REDUCER
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:40
-
Maximum Overhung load value And um:3640Lbs
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:Not Applicable
-
Mounting Method:Direct Mounted
-
Mounting Position:Floor / Wall / Ceiling
-
Nominal Center Distance:4 Inch / 101.6 Millimeter
-
Nominal Max Input Rating:10HP
-
Nominal Max Output RPM:175
-
Nominal Ratio:0.417361111111111
-
Noun:Reducer
-
Other Features:Single Reduction / Totally Enclosed Non-Vented Sealing
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:175
-
Output Shaft Diameter:1.875 Inch / 47.625 Millimeter
-
Output Shaft Length:3.76 Inch / 95.504 Millimeter
-
Output Torque:4418In-Lbs
-
Output Type:Right and Left Hand
-
Overall Height:11.52 Inch / 292.608 Millimeter
-
Overall Length:14.54 Inch / 369.316 Millimeter
-
Overall Width:16.24 Inch / 412.496 Millimeter
-
Reducer Type:Right Angle
-
Tradename:TIGEAR-2
-
UNSPSC:26111537
-
Weight / Kilogram:61.29
-
Weight / LBS:135
