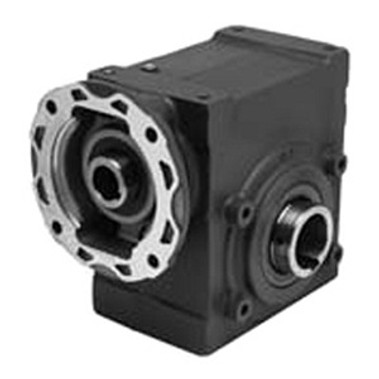

Dodge 40Q40H18WP Right Angle Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 40Q40H18WP Right Angle Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:8.44 Inch / 214.376 Millimeter
-
Base to Center of Output Shaft:4.44 Inch / 112.776 Millimeter
-
Bolt Hole Diameter:0.625 Inch / 15.875 Millimeter
-
Brand:DODGE
-
Category:Right Angle Shafts
-
Center Distance:4 Inch / 101.6 Millimeter
-
EAN:782476234317
-
Fan Cooling:No
-
Gearing:Worm
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:White Painted Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:4.43HP
-
Input Shaft Diameter:1.125 Inch / 28.575 Millimeter
-
Input Shaft Length:0 Inch / 0 Millimeter
-
Input Type:C-Face Quill
-
Keyword String:Speed Worm
-
Long Description:Right Angle Reducer; TIGEAR-2; 40 To 1 Nominal Ratio; 182TC/184TC Frame; Quill Input; Bushed Output; Worm Gear; 40 Series; Base Mounted; 1-1/8 Input Shaft Diameter
-
Manufacturer Internal Number:40Q40H18WP
-
Manufacturer Item Number:TIGEAR-2 REDUCER W/ WHITE PAINT
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:40
-
Maximum Overhung load value And um:4300Lbs
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:182TC/184TC
-
Mounting Method:Direct Mounted
-
Mounting Position:Floor / Wall / Ceiling
-
Nominal Center Distance:4 Inch / 101.6 Millimeter
-
Nominal Max Input Rating:3HP
-
Nominal Max Output RPM:43.8
-
Nominal Ratio:1.66736111111111
-
Noun:Reducer
-
Other Features:Single Reduction / Without Bushing / Totally Enclosed Non-Vented Sealing / Maximum Bore Required No Bushing
-
Output Bore Range:1-1/2 To 2-3/16 Inch / 38.1 To 55.563 Millimeter
-
Output Bore:2.188 Inch / 55.575 Millimeter
-
Output RPM at 1750 RPM Input:44
-
Output Shaft Diameter:0 Inch / 0 Millimeter
-
Output Shaft Length:0 Inch / 0 Millimeter
-
Output Torque:4800In-Lbs
-
Output Type:Bushed
-
Overall Height:12.94 Inch / 328.676 Millimeter
-
Overall Length:14.39 Inch / 365.506 Millimeter
-
Overall Width:9.82 Inch / 249.428 Millimeter
-
Reducer Type:Right Angle
-
Tradename:TIGEAR-2
-
UNSPSC:26111537
-
Weight / Kilogram:61.29
-
Weight / LBS:135
