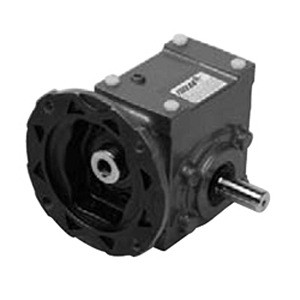

Dodge 30QZ07R18WP Right Angle Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 30QZ07R18WP Right Angle Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:6.25 Inch / 158.75 Millimeter
-
Base to Center of Output Shaft:3.25 Inch / 82.55 Millimeter
-
Bolt Hole Diameter:0.438 Inch / 11.125 Millimeter
-
Brand:DODGE
-
Category:Right Angle Shafts
-
Center Distance:3 Inch / 76.2 Millimeter
-
EAN:782476226855
-
Fan Cooling:No
-
Gearing:Worm
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:White Painted Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:8.74HP
-
Input Shaft Diameter:1.125 Inch / 28.575 Millimeter
-
Input Shaft Length:0 Inch / 0 Millimeter
-
Input Type:C-Face Quill
-
Keyword String:Speed Worm
-
Long Description:Right Angle Reducer; TIGEAR-2 E-Z KLEEN; 8 To 1 Nominal Ratio; 182TC/184TC Frame; Quill Input; Right Hand Output; Worm Gear; 30 Series; Base Mounted; 1-1/8 Input Shaft Diameter
-
Manufacturer Internal Number:30QZ07R18W
-
Manufacturer Item Number:TIGEAR-2 E-Z KLEEN REDUCER-WHITE
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:30
-
Maximum Overhung load value And um:1540Lbs
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:182TC/184TC
-
Mounting Method:Direct Mounted
-
Mounting Position:Floor / Wall / Ceiling
-
Nominal Center Distance:3 Inch / 76.2 Millimeter
-
Nominal Max Input Rating:7.5HP
-
Nominal Max Output RPM:218.8
-
Nominal Ratio:0.334027777777778
-
Noun:Reducer
-
Other Features:Single Reduction / Washdown Duty / Totally Enclosed Non-Vented Sealing
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:233
-
Output Shaft Diameter:1.375 Inch / 34.925 Millimeter
-
Output Shaft Length:3.2 Inch / 81.28 Millimeter
-
Output Torque:2171In-Lbs
-
Output Type:Right Hand
-
Overall Height:10.75 Inch / 273.05 Millimeter
-
Overall Length:11.39 Inch / 289.306 Millimeter
-
Overall Width:11.25 Inch / 285.75 Millimeter
-
Reducer Type:Right Angle
-
Tradename:TIGEAR-2 E-Z KLEEN
-
UNSPSC:26111537
-
Weight / Kilogram:40.41
-
Weight / LBS:89
