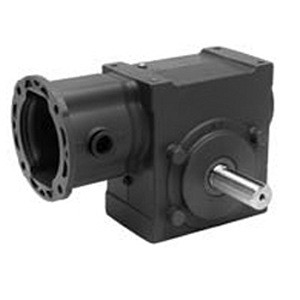

Dodge 26A30R56 Right Angle Shaft

Specs

Base Included:

No

Base to Center of Input Shaft:

5.5 Inch / 139.7 Millimeter

Base to Center of Output Shaft:

2.87 Inch / 72.898 Millimeter

Bolt Hole Diameter:

0.375 Inch / 9.525 Millimeter

Brand:

DODGE

Category:

Right Angle Shafts

Center Distance:

2.63 Inch / 66.802 Millimeter

EAN:

782475785018

Fan Cooling:

No

Gearing:

Worm

Harmonized Tariff Code:

8483.40.10.00

Housing Material And Finish:

Class 30 Gray Iron

Inch - Metric:

Inch

Input Rating value plus um:

2HP

Input Shaft Diameter:

0.875 Inch / 22.225 Millimeter

Input Shaft Length:

1.17 Inch / 29.718 Millimeter

Input Type:

C-Face Coupling

Keyword String:

Speed Worm

Long Description:

Right Angle Reducer; TIGEAR-2; 30 To 1 Nominal Ratio; 56C Frame; Coupling Input; Right Hand Output; Worm Gear; 26 Series; Base Mounted; 7/8 Input Shaft Diameter

Manufacturer Internal Number:

26A30R56

Manufacturer Item Number:

26A30R56 TIGEAR-2 REDUCER

Manufacturer Name:

ABB MOTORS AND MECHANICAL INC

Manufacturer URL:

http://www.dodge-pt.com"

Manufacturer's Series:

26

Maximum Overhung load value And um:

1610Lbs

Motor Included:

No

Mounting Bolt Pattern footprint:

Rectangular

Mounting Frame:

56C

Mounting Method:

Direct Mounted

Mounting Position:

Floor / Wall / Ceiling

Nominal Center Distance:

2.63 Inch / 66.8 Millimeter

Nominal Max Input Rating:

2HP

Nominal Max Output RPM:

58.3

Nominal Ratio:

1.25069444444444

Noun:

Reducer

Other Features:

Single Reduction / Totally Enclosed Non-Vented Sealing

Output Bore:

0 Inch / 0 Millimeter

Output RPM at 1750 RPM Input:

58

Output Shaft Diameter:

1.125 Inch / 28.575 Millimeter

Output Shaft Length:

2.67 Inch / 67.818 Millimeter

Output Torque:

1705In-Lbs

Output Type:

Right Hand

Overall Height:

8.76 Inch / 222.504 Millimeter

Overall Length:

12.49 Inch / 317.246 Millimeter

Overall Width:

8.88 Inch / 225.552 Millimeter

Reducer Type:

Right Angle

Tradename:

TIGEAR-2

UNSPSC:

26111537

Weight / Kilogram:

31.33

Weight / LBS:

69
