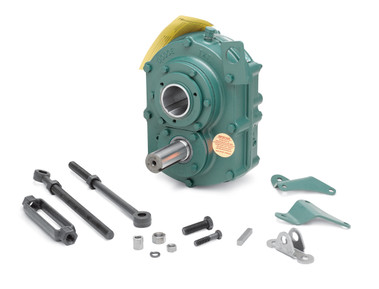

Dodge 254204 Parallel Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 254204 Parallel Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:0 Inch / 0 Millimeter
-
Base to Center of Output Shaft:0 Inch / 0 Millimeter
-
Bolt Hole Diameter:0.5 Inch / 12.7 Millimeter
-
Brand:DODGE
-
Category:Parallel Shafts
-
Center Distance:4.88 Inch / 123.952 Millimeter
-
EAN:782475688258
-
Fan Cooling:No
-
Gearing:Helical
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:30HP
-
Input Shaft Diameter:1.938 Inch / 49.225 Millimeter
-
Input Shaft Length:5.56 Inch / 141.224 Millimeter
-
Input Type:Shaft
-
Keyword String:Speed Helical
-
Long Description:Parallel Reducer; TORQUE-ARM; 5:1 Nominal Ratio; Shaft Input; Bushed Output; Helical Gear; TXT Series; Shaft Mounted; 1-15/16 Input Shaft Diameter
-
Manufacturer Internal Number:254204
-
Manufacturer Item Number:TXT405AS,ASV STRAIGHT BORE REDR
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:TXT
-
Motor Included:No
-
Mounting Frame:Not Applicable
-
Mounting Method:Shaft Mounted
-
Nominal Center Distance:4.88 Inch / 123.95 Millimeter
-
Nominal Max Input Rating:30HP
-
Nominal Max Output RPM:350
-
Nominal Ratio:0.209027777777778
-
Noun:Reducer
-
Other Features:Single Reduction / Without Bushing / Maximum Bore Required No Bushing / Other Mount: Torque Arm Mounted
-
Output Bore Range:1-7/16 To 2-7/16 Inch / 36.513 To 61.913 Millimeter
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:0
-
Output Shaft Diameter:0 Inch / 0 Millimeter
-
Output Shaft Length:0 Inch / 0 Millimeter
-
Output Type:Bushed
-
Overall Height:15.13 Inch / 384.302 Millimeter
-
Overall Length:12.54 Inch / 318.516 Millimeter
-
Overall Width:10.38 Inch / 263.652 Millimeter
-
Reducer Type:Parallel
-
Tradename:TORQUE-ARM
-
UNSPSC:26111538
-
Weight / Kilogram:59.02
-
Weight / LBS:122
