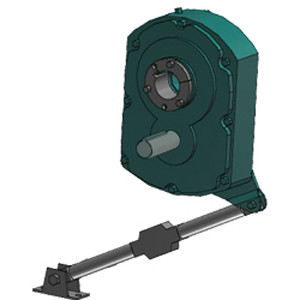

Dodge 249267 Parallel Shaft

Specs

Base Included:

No

Base to Center of Input Shaft:

0 Inch / 0 Millimeter

Base to Center of Output Shaft:

0 Inch / 0 Millimeter

Bolt Hole Diameter:

0.75 Inch / 19.05 Millimeter

Brand:

DODGE

Category:

Parallel Shafts

Center Distance:

10.97 Inch / 278.638 Millimeter

EAN:

782475251278

Fan Cooling:

No

Gearing:

Helical

Harmonized Tariff Code:

8483.40.10.00

Housing Material And Finish:

Class 30 Gray Iron

Inch - Metric:

Inch

Input Rating value plus um:

150HP

Input Shaft Diameter:

2.438 Inch / 61.925 Millimeter

Input Shaft Length:

9.61 Inch / 244.094 Millimeter

Input Type:

Shaft

Keyword String:

Speed Helical

Long Description:

Parallel Reducer; TORQUE-ARM; 5:1 Nominal Ratio; Shaft Input; Bushed Output; Helical Gear; TXT Series; Shaft Mounted; 2-7/16 Input Shaft Diameter

Manufacturer Internal Number:

249267

Manufacturer Item Number:

TXT905S,SV STRAIGHT BORE REDUCER

Manufacturer Name:

ABB MOTORS AND MECHANICAL INC

Manufacturer URL:

http://www.dodge-pt.com"

Manufacturer's Series:

TXT

Motor Included:

No

Mounting Frame:

Not Applicable

Mounting Method:

Shaft Mounted

Nominal Center Distance:

10.97 Inch / 278.64 Millimeter

Nominal Max Input Rating:

150HP

Nominal Max Output RPM:

350

Nominal Ratio:

0.209027777777778

Noun:

Reducer

Other Features:

Single Reduction / Without Bushing / Maximum Bore Required No Bushing / Other Mount: Torque Arm Mounted

Output Bore Range:

3-7/16 To 4-15/16 Inch / 87.313 To 125.413 Millimeter

Output Bore:

0 Inch / 0 Millimeter

Output RPM at 1750 RPM Input:

0

Output Shaft Diameter:

0 Inch / 0 Millimeter

Output Shaft Length:

0 Inch / 0 Millimeter

Output Type:

Bushed

Overall Height:

31.69 Inch / 804.926 Millimeter

Overall Length:

20.98 Inch / 532.892 Millimeter

Overall Width:

22.63 Inch / 574.802 Millimeter

Reducer Type:

Parallel

Tradename:

TORQUE-ARM

UNSPSC:

26111538

Weight / Kilogram:

303.27

Weight / LBS:

668
