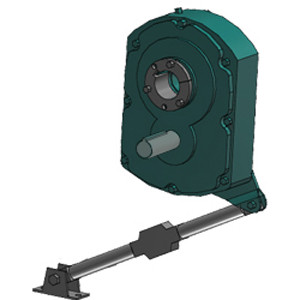

Dodge 247285 Parallel Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 247285 Parallel Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:0 Inch / 0 Millimeter
-
Base to Center of Output Shaft:0 Inch / 0 Millimeter
-
Bolt Hole Diameter:0.625 Inch / 15.875 Millimeter
-
Brand:DODGE
-
Category:Parallel Shafts
-
Center Distance:8.31 Inch / 211.074 Millimeter
-
EAN:782475215164
-
Fan Cooling:No
-
Gearing:Helical
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:125HP
-
Input Shaft Diameter:2.438 Inch / 61.925 Millimeter
-
Input Shaft Length:6.34 Inch / 161.036 Millimeter
-
Input Type:Shaft
-
Keyword String:Speed Helical
-
Long Description:Parallel Reducer; TORQUE-ARM; 5:1 Nominal Ratio; Shaft Input; Bushed Output; Helical Gear; TXT Series; Shaft Mounted; 2-7/16 Input Shaft Diameter
-
Manufacturer Internal Number:247285
-
Manufacturer Item Number:TXT705T,TV TAPER BUSHED REDUCER
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:TXT
-
Motor Included:No
-
Mounting Frame:Not Applicable
-
Mounting Method:Shaft Mounted
-
Nominal Center Distance:8.31 Inch / 211.07 Millimeter
-
Nominal Max Input Rating:125HP
-
Nominal Max Output RPM:350
-
Nominal Ratio:0.209027777777778
-
Noun:Reducer
-
Other Features:Single Reduction / Without Bushing / Other Mount: Torque Arm Mounted
-
Output Bore Range:2-7/16 To 3-15/16 Inch / 61.913 To 100.013 Millimeter
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:0
-
Output Shaft Diameter:0 Inch / 0 Millimeter
-
Output Shaft Length:0 Inch / 0 Millimeter
-
Output Type:Bushed
-
Overall Height:25.94 Inch / 658.876 Millimeter
-
Overall Length:16.6 Inch / 421.64 Millimeter
-
Overall Width:18.75 Inch / 476.25 Millimeter
-
Reducer Type:Parallel
-
Tradename:TORQUE-ARM
-
UNSPSC:26111538
-
Weight / Kilogram:229.27
-
Weight / LBS:410
