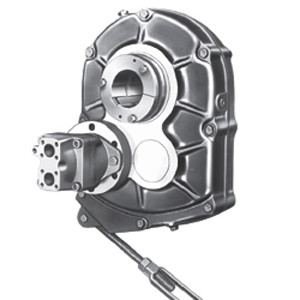

Dodge 246154 Parallel Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 246154 Parallel Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:0 Inch / 0 Millimeter
-
Base to Center of Output Shaft:0 Inch / 0 Millimeter
-
Bolt Hole Diameter:0.625 Inch / 15.875 Millimeter
-
Brand:DODGE
-
Category:Parallel Shafts
-
Center Distance:6.73 Inch / 170.942 Millimeter
-
EAN:782475217168
-
Fan Cooling:No
-
Gearing:Helical
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:Gear Motor
-
Input Shaft Diameter:0 Inch / 0 Millimeter
-
Input Shaft Length:0 Inch / 0 Millimeter
-
Input Type:Hydraulic Motor
-
Long Description:Parallel Reducer; HYDROIL TORQUE-ARM; 15:1 Nominal Ratio; B40 Frame; Hydraulic Motor Input; Bushed Output; Helical Gear; HXT Series; Shaft Mounted; Class 30 Gray Iron
-
Manufacturer Internal Number:246154
-
Manufacturer Item Number:HXT615AT,ATV TAPER BUSH REDUCER
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:HXT
-
Motor Included:Yes
-
Mounting Frame:B40
-
Mounting Method:Shaft Mounted
-
Nominal Center Distance:6.73 Inch / 170.94 Millimeter
-
Nominal Max Input Rating:Gear Motor
-
Nominal Max Output RPM:116.7
-
Nominal Ratio:0.625694444444444
-
Noun:Gear Unit
-
Other Features:Double Reduction / Without Bushing / Other Mount: Torque Arm Mounted / HYDROIL Vane Motor
-
Output Bore Range:2-3/16 To 3-7/16 Inch / 55.563 To 87.313 Millimeter
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:0
-
Output Shaft Diameter:0 Inch / 0 Millimeter
-
Output Shaft Length:0 Inch / 0 Millimeter
-
Output Type:Bushed
-
Overall Height:21.31 Inch / 541.274 Millimeter
-
Overall Length:18.58 Inch / 471.932 Millimeter
-
Overall Width:15.845 Inch / 402.463 Millimeter
-
Reducer Type:Parallel
-
Tradename:HYDROIL TORQUE-ARM
-
UNSPSC:26111524
-
Weight / Kilogram:140.74
-
Weight / LBS:293
