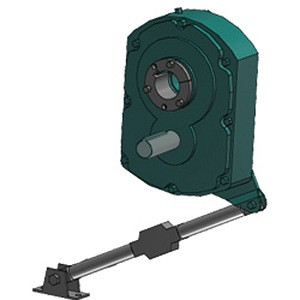

Dodge 244527 Parallel Shaft

Specs

Base Included:

No

Base to Center of Input Shaft:

0 Inch / 0 Millimeter

Base to Center of Output Shaft:

0 Inch / 0 Millimeter

Bolt Hole Diameter:

0.5 Inch / 12.7 Millimeter

Brand:

DODGE

Category:

Parallel Shafts

Center Distance:

4.79 Inch / 121.666 Millimeter

EAN:

782475689385

Fan Cooling:

No

Gearing:

Helical

Harmonized Tariff Code:

8483.40.10.00

Housing Material And Finish:

Class 30 Gray Iron

Inch - Metric:

Inch

Input Rating value plus um:

10HP

Input Shaft Diameter:

1.438 Inch / 36.525 Millimeter

Input Shaft Length:

5.57 Inch / 141.478 Millimeter

Input Type:

Shaft

Keyword String:

Speed Helical

Long Description:

Parallel Reducer; TORQUE-ARM; 25:1 Nominal Ratio; Shaft Input; Bushed Output; Helical Gear; TXT Series; Shaft Mounted; 1-7/16 Input Shaft Diameter

Manufacturer Internal Number:

244527

Manufacturer Item Number:

TXT425BT,BTV TAPER BUSH REDUCER

Manufacturer Name:

ABB MOTORS AND MECHANICAL INC

Manufacturer URL:

http://www.dodge-pt.com"

Manufacturer's Series:

TXT

Motor Included:

No

Mounting Frame:

Not Applicable

Mounting Method:

Shaft Mounted

Nominal Center Distance:

4.79 Inch / 121.67 Millimeter

Nominal Max Input Rating:

10HP

Nominal Max Output RPM:

70

Nominal Ratio:

1.04236111111111

Noun:

Reducer

Other Features:

Double Reduction / Without Bushing / Other Mount: Torque Arm Mounted

Output Bore Range:

1-7/16 To 2-7/16 Inch / 36.513 To 61.913 Millimeter

Output Bore:

0 Inch / 0 Millimeter

Output RPM at 1750 RPM Input:

0

Output Shaft Diameter:

0 Inch / 0 Millimeter

Output Shaft Length:

0 Inch / 0 Millimeter

Output Type:

Bushed

Overall Height:

15.13 Inch / 384.302 Millimeter

Overall Length:

13.42 Inch / 340.868 Millimeter

Overall Width:

10.38 Inch / 263.652 Millimeter

Reducer Type:

Parallel

Tradename:

TORQUE-ARM

UNSPSC:

26111538

Weight / Kilogram:

63.11

Weight / LBS:

139
