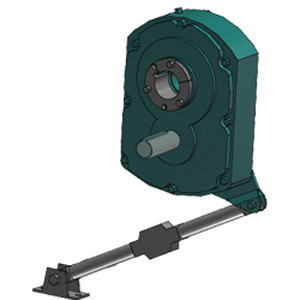

Dodge 242253 Parallel Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 242253 Parallel Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:0 Inch / 0 Millimeter
-
Base to Center of Output Shaft:0 Inch / 0 Millimeter
-
Bolt Hole Diameter:0.438 Inch / 11.125 Millimeter
-
Brand:DODGE
-
Category:Parallel Shafts
-
Center Distance:3.86 Inch / 98.044 Millimeter
-
EAN:782475208616
-
Fan Cooling:No
-
Gearing:Helical
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:10HP
-
Input Shaft Diameter:1.438 Inch / 36.525 Millimeter
-
Input Shaft Length:3.64 Inch / 92.456 Millimeter
-
Input Type:Shaft
-
Keyword String:Speed Helical
-
Long Description:Parallel Reducer; TORQUE-ARM; 5:1 Nominal Ratio; Shaft Input; Bushed Output; Helical Gear; TXT Series; Shaft Mounted; 1-7/16 Input Shaft Diameter
-
Manufacturer Internal Number:242253
-
Manufacturer Item Number:TXT205S,SV STRAIGHT BORE REDUCER
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:TXT
-
Motor Included:No
-
Mounting Frame:Not Applicable
-
Mounting Method:Shaft Mounted
-
Nominal Center Distance:3.86 Inch / 98.04 Millimeter
-
Nominal Max Input Rating:10HP
-
Nominal Max Output RPM:350
-
Nominal Ratio:0.209027777777778
-
Noun:Reducer
-
Other Features:Single Reduction / Without Bushing / Maximum Bore Required No Bushing / Other Mount: Torque Arm Mounted
-
Output Bore Range:1-3/16 To 1-15/16 Inch / 30.163 To 49.213 Millimeter
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:0
-
Output Shaft Diameter:0 Inch / 0 Millimeter
-
Output Shaft Length:0 Inch / 0 Millimeter
-
Output Type:Bushed
-
Overall Height:11.41 Inch / 289.814 Millimeter
-
Overall Length:8.84 Inch / 224.536 Millimeter
-
Overall Width:8.38 Inch / 212.852 Millimeter
-
Reducer Type:Parallel
-
Tradename:TORQUE-ARM
-
UNSPSC:26111538
-
Weight / Kilogram:25.156
-
Weight / LBS:52
