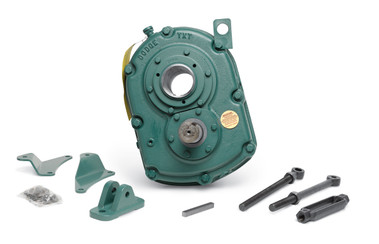

Dodge 242083 Parallel Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 242083 Parallel Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:0 Inch / 0 Millimeter
-
Base to Center of Output Shaft:0 Inch / 0 Millimeter
-
Bolt Hole Diameter:0.438 Inch / 11.125 Millimeter
-
Brand:DODGE
-
Category:Parallel Shafts
-
Center Distance:3.75 Inch / 95.25 Millimeter
-
EAN:782475213382
-
Fan Cooling:No
-
Gearing:Helical
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:5HP
-
Input Shaft Diameter:1.125 Inch / 28.575 Millimeter
-
Input Shaft Length:3.59 Inch / 91.186 Millimeter
-
Input Type:Shaft
-
Keyword String:Speed Helical
-
Long Description:Parallel Reducer; TORQUE-ARM; 25:1 Nominal Ratio; Shaft Input; Bushed Output; Helical Gear; TXT Series; Shaft Mounted; 1-1/8 Input Shaft Diameter
-
Manufacturer Internal Number:242083
-
Manufacturer Item Number:TXT225AT,ATV TAPER BUSH REDUCER
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:TXT
-
Motor Included:No
-
Mounting Frame:Not Applicable
-
Mounting Method:Shaft Mounted
-
Nominal Center Distance:3.75 Inch / 95.25 Millimeter
-
Nominal Max Input Rating:5HP
-
Nominal Max Output RPM:70
-
Nominal Ratio:1.04236111111111
-
Noun:Reducer
-
Other Features:Double Reduction / Without Bushing / Other Mount: Torque Arm Mounted
-
Output Bore Range:1-1/8 To 1-15/16 Inch / 28.575 To 49.213 Millimeter
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:0
-
Output Shaft Diameter:0 Inch / 0 Millimeter
-
Output Shaft Length:0 Inch / 0 Millimeter
-
Output Type:Bushed
-
Overall Height:11.41 Inch / 289.814 Millimeter
-
Overall Length:9.55 Inch / 242.57 Millimeter
-
Overall Width:8.38 Inch / 212.852 Millimeter
-
Reducer Type:Parallel
-
Tradename:TORQUE-ARM
-
UNSPSC:26111538
-
Weight / Kilogram:26.33
-
Weight / LBS:58
