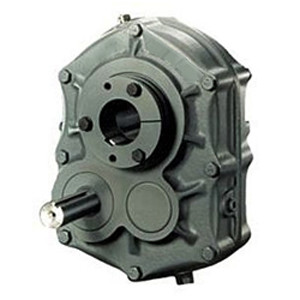

Dodge 241416 Parallel Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 241416 Parallel Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:0 Inch / 0 Millimeter
-
Base to Center of Output Shaft:0 Inch / 0 Millimeter
-
Bolt Hole Diameter:0.438 Inch / 11.125 Millimeter
-
Brand:DODGE
-
Category:Parallel Shafts
-
Center Distance:3.27 Inch / 83.058 Millimeter
-
EAN:782476039462
-
Fan Cooling:No
-
Gearing:Helical
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:5HP
-
Input Shaft Diameter:1.125 Inch / 28.575 Millimeter
-
Input Shaft Length:3.27 Inch / 83.058 Millimeter
-
Input Type:Shaft
-
Keyword String:Speed Helical
-
Long Description:Parallel Reducer; TORQUE-ARM; 5:1 Nominal Ratio; Shaft Input; Bushed Output; Helical Gear; TXT Series; Shaft Mounted; 1-1/8 Input Shaft Diameter
-
Manufacturer Internal Number:241416
-
Manufacturer Item Number:TXT105S FLANGE MOUNT REDUCER
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:TXT
-
Motor Included:No
-
Mounting Frame:Not Applicable
-
Mounting Method:Shaft Mounted
-
Nominal Center Distance:3.27 Inch / 83.06 Millimeter
-
Nominal Max Input Rating:5HP
-
Nominal Max Output RPM:350
-
Nominal Ratio:0.209027777777778
-
Noun:Reducer
-
Other Features:Single Reduction / Without Bushing / Maximum Bore Required No Bushing / Other Mount: Flange Mounted / With Mounting Pads
-
Output Bore Range:1 To 1-7/16 Inch / 25.4 To 36.513 Millimeter
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:0
-
Output Shaft Diameter:0 Inch / 0 Millimeter
-
Output Shaft Length:0 Inch / 0 Millimeter
-
Output Type:Bushed
-
Overall Height:9.94 Inch / 252.476 Millimeter
-
Overall Length:8.35 Inch / 212.09 Millimeter
-
Overall Width:7.13 Inch / 181.102 Millimeter
-
Reducer Type:Parallel
-
Tradename:TORQUE-ARM
-
UNSPSC:26111538
-
Weight / Kilogram:18.144
-
Weight / LBS:40
