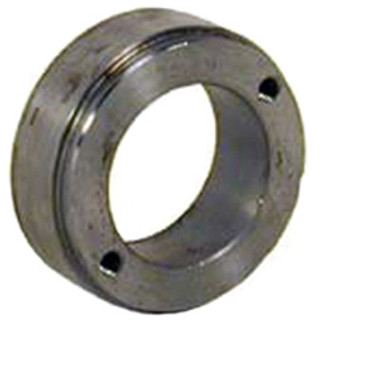

Dodge 228465 Hubs
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 228465 Hubs Specifications
-
Bore:0 Inch / 0 Millimeter
-
Brand:DODGE
-
Bushing Bore Range:3/8 To 1-1/2 Inch / 10 To 38 Millimeter
-
Bushing Size if bushed:H
-
Bushing Style:QD
-
Category:Hubs
-
EAN:782475900459
-
Harmonized Tariff Code:8483.90.80.80
-
Hub Type:Weld-On Hub
-
Inch - Metric:Inch
-
Keyway Yes/No:No
-
Keyword String:Weld-On
-
Length Thru Bore:0.875 Inch / 22.225 Millimeter
-
Long Description:2-1/2 Outside Diameter
-
Manufacturer Internal Number:228465
-
Manufacturer Item Number:H-A QD HUB
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Material:Steel
-
Mounting Method:Bushed
-
Nominal Bolt Circle Diameter Round:2 Inch / 50.8 Millimeter
-
Noun:Hub
-
Other Features:1/4-20 NC Tapped Hole / 2 Tapped Hole / Used With Fan Rotor - Pulley - Plate Sprocket - Impeller - Agitator
-
Outside Diameter:2.5 Inch / 63.5 Millimeter
-
Pilot Diameter:2.375 Inch / 60.325 Millimeter
-
Pilot Length:0.17 Inch / 4.318 Millimeter
-
UNSPSC:26111534
-
Weight / Kilogram:0.27
-
Weight / LBS:0.6
