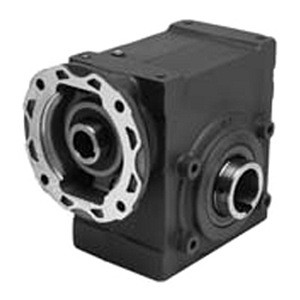

Dodge 17Q07H14WP Right Angle Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 17Q07H14WP Right Angle Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:3.74 Inch / 94.996 Millimeter
-
Base to Center of Output Shaft:1.99 Inch / 50.546 Millimeter
-
Bolt Hole Diameter:0.313 Inch / 7.95 Millimeter
-
Brand:DODGE
-
Category:Right Angle Shafts
-
Center Distance:1.75 Inch / 44.45 Millimeter
-
EAN:782476205607
-
Fan Cooling:No
-
Gearing:Worm
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:White Painted Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:2.06HP
-
Input Shaft Diameter:0.875 Inch / 22.225 Millimeter
-
Input Shaft Length:0 Inch / 0 Millimeter
-
Input Type:C-Face Quill
-
Keyword String:Speed Worm
-
Long Description:Right Angle Reducer; TIGEAR-2; 8 To 1 Nominal Ratio; 143TC/145TC Frame; Quill Input; Hollow Shaft Output; Worm Gear; 17 Series; Base Mounted; 7/8 Input Shaft Diameter
-
Manufacturer Internal Number:17Q07H14WP
-
Manufacturer Item Number:TIGEAR-2 REDUCER W/ WHITE PAINT
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:17
-
Maximum Overhung load value And um:1190Lbs
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:143TC/145TC
-
Mounting Method:Direct Mounted
-
Mounting Position:Floor / Wall / Ceiling
-
Nominal Center Distance:1.75 Inch / 44.45 Millimeter
-
Nominal Max Input Rating:2HP
-
Nominal Max Output RPM:218.8
-
Nominal Ratio:0.334027777777778
-
Noun:Reducer
-
Other Features:Single Reduction / Totally Enclosed Non-Vented Sealing
-
Output Bore:1 Inch / 25.4 Millimeter
-
Output RPM at 1750 RPM Input:233
-
Output Shaft Diameter:0 Inch / 0 Millimeter
-
Output Shaft Length:0 Inch / 0 Millimeter
-
Output Torque:500In-Lbs
-
Output Type:Hollow Shaft
-
Overall Height:7 Inch / 177.8 Millimeter
-
Overall Length:8.09 Inch / 205.486 Millimeter
-
Overall Width:6.5 Inch / 165.1 Millimeter
-
Reducer Type:Right Angle
-
Tradename:TIGEAR-2
-
UNSPSC:26111537
-
Weight / Kilogram:12.701
-
Weight / LBS:43
