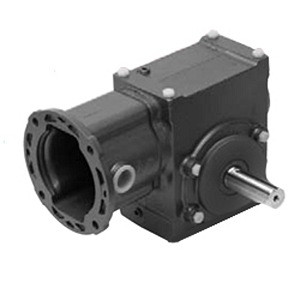

Dodge 13AZ40LR56WP Right Angle Shaft

Specs

Base Included:

No

Base to Center of Input Shaft:

3.04 Inch / 77.216 Millimeter

Base to Center of Output Shaft:

1.71 Inch / 43.434 Millimeter

Bolt Hole Diameter:

0.25 Inch / 6.35 Millimeter

Brand:

DODGE

Category:

Right Angle Shafts

Center Distance:

1.33 Inch / 33.782 Millimeter

EAN:

782476199760

Fan Cooling:

No

Gearing:

Worm

Harmonized Tariff Code:

8483.40.10.00

Housing Material And Finish:

White Painted Class 30 Gray Iron

Inch - Metric:

Inch

Input Rating value plus um:

0.32HP

Input Shaft Diameter:

0.5 Inch / 12.7 Millimeter

Input Shaft Length:

1.22 Inch / 30.988 Millimeter

Input Type:

C-Face Coupling

Keyword String:

Speed Worm

Long Description:

Right Angle Reducer; TIGEAR-2 E-Z KLEEN; 40 To 1 Nominal Ratio; 56C Frame; Coupling Input; Right and Left Hand Output; Worm Gear; 13 Series; Base Mounted; 1/2 Input Shaft Diameter

Manufacturer Item Number:

TIGEAR-2 E-Z KLEEN REDUCER-WHITE

Manufacturer Name:

ABB MOTORS AND MECHANICAL INC

Manufacturer URL:

http://www.dodge-pt.com"

Manufacturer's Series:

13

Maximum Overhung load value And um:

650Lbs

Motor Included:

No

Mounting Bolt Pattern footprint:

Rectangular

Mounting Frame:

56C

Mounting Method:

Direct Mounted

Mounting Position:

Floor / Wall / Ceiling

Nominal Center Distance:

1.33 Inch / 33.78 Millimeter

Nominal Max Input Rating:

0.25HP

Nominal Max Output RPM:

43.8

Nominal Ratio:

1.66736111111111

Noun:

Reducer

Other Features:

Single Reduction / Washdown Duty / Totally Enclosed Non-Vented Sealing

Output Bore:

0 Inch / 0 Millimeter

Output RPM at 1750 RPM Input:

44

Output Shaft Diameter:

0.625 Inch / 15.875 Millimeter

Output Shaft Length:

1.9 Inch / 48.26 Millimeter

Output Torque:

319In-Lbs

Output Type:

Right and Left Hand

Overall Height:

6.5 Inch / 165.1 Millimeter

Overall Length:

9.86 Inch / 250.444 Millimeter

Overall Width:

8 Inch / 203.2 Millimeter

Reducer Type:

Right Angle

Tradename:

TIGEAR-2 E-Z KLEEN

UNSPSC:

26111537

Weight / Kilogram:

17.71

Weight / LBS:

39
