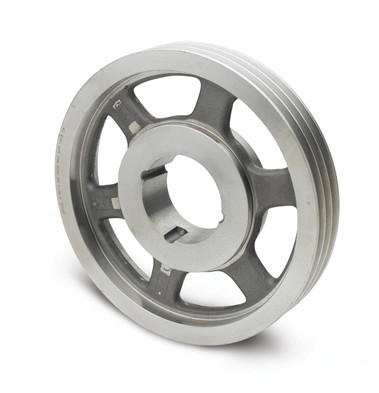

Dodge 118104 Sheaves - Fixed Pitch

Specs

Belt Series:

A / B

Belt Width Maximum:

0.656 Inch / 16.662 Millimeter

Belt Width Minimum:

0.5 Inch / 12.7 Millimeter

Bore:

0 Inch / 0 Millimeter

Brand:

DODGE

Bushing Bore Range:

1/2 To 1-1/4 Inch / 16 To 32 Millimeter

Bushing Size:

1215

Category:

Sheaves - Fixed Pitch

EAN:

782475607105

Harmonized Tariff Code:

8483.50.90.40

Inch - Metric:

Inch

Keyway Yes/No:

Yes

Keyword String:

Transmission

Long Description:

5 Grooves; 4.35 Outside Diameter

Manufacturer Internal Number:

118104

Manufacturer Item Number:

5B4.0-1215 SHEAVE

Manufacturer Name:

ABB MOTORS AND MECHANICAL INC

Manufacturer URL:

http://www.dodge-pt.com"

Max Bore:

0

Minimum Plain Bore:

No

Mounting Method:

Bushed

Noun:

Pulley

Number of Grooves:

5

Other Features:

Taper Lock Bushing / Solid Style

Outside Diameter:

4.35 Inch / 110.49 Millimeter

Pitch Diameter Maximum:

4 Inch / 101.6 Millimeter

Pitch Diameter Minimum:

3.6 Inch / 91.44 Millimeter

UNSPSC:

26111806

Weight / Kilogram:

3.169

Weight / LBS:

6.98
