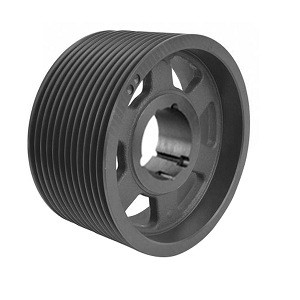

Dodge 110991 Sheaves - Fixed Pitch

Specs

Belt Series:

8V

Belt Width Maximum:

1 Inch / 25.4 Millimeter

Belt Width Minimum:

1 Inch / 25.4 Millimeter

Bore:

0 Inch / 0 Millimeter

Brand:

DODGE

Bushing Bore Range:

2-7/16 To 5 Inch / 55 To 125 Millimeter

Bushing Size:

5050

Category:

Sheaves - Fixed Pitch

EAN:

782475652686

Harmonized Tariff Code:

8483.50.90.40

Inch - Metric:

Inch

Keyway Yes/No:

Yes

Keyword String:

Transmission

Long Description:

12 Grooves; 24.8 Outside Diameter

Manufacturer Internal Number:

110991

Manufacturer Item Number:

12-8V24.8-5050 SHEAVE

Manufacturer Name:

ABB MOTORS AND MECHANICAL INC

Manufacturer URL:

http://www.dodge-pt.com"

Max Bore:

0

Minimum Plain Bore:

No

Mounting Method:

Bushed

Noun:

Pulley

Number of Grooves:

12

Other Features:

Taper Lock Bushing / Arm Style

Outside Diameter:

24.8 Inch / 629.92 Millimeter

Pitch Diameter Maximum:

24.6 Inch / 624.84 Millimeter

Pitch Diameter Minimum:

24.6 Inch / 624.84 Millimeter

UNSPSC:

26111806

Weight / Kilogram:

96.162

Weight / LBS:

406.3
