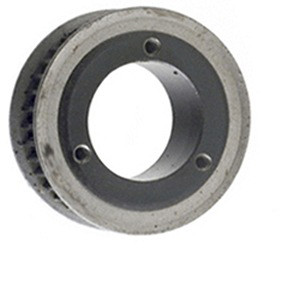

Dodge 110703 Pulleys - Synchronous

Specs

Belt Pitch:

8 Millimeter

Belt Style:

8M-20

Belt Width:

0.787 Inch / 20 Millimeter

Bore:

0 Inch / 0 Millimeter

Brand:

DODGE

Bushing Bore Range:

1/2 To 1-1/2 Inch / 14 To 38 Millimeter

Bushing Size:

QT

Category:

Pulleys - Synchronous

EAN:

782475265602

Face Width:

0.875 Inch / 22.225 Millimeter

Flange Outside Diameter:

3.15 Inch / 80.01 Millimeter

Flanges:

Yes

Harmonized Tariff Code:

8483.50.90.80

Inch - Metric:

Metric

Keyway Yes/No:

Yes

Keyword String:

Synchronous

Long Description:

Pulley, Synchronous; 20MM Belt Width; 8 Millimeter Belt Pitch; 8M-20 Belt Style; 28 Teeth; 22.225MM Face Width; Bushed; 80.01MM Flange OD; 70.08MM Outside Diameter; 71.3MM Pitch Diameter; Keyway; QT Bushing; No Minimum Plain Bore

Manufacturer Name:

ABB MOTORS AND MECHANICAL INC

Manufacturer URL:

http://www.dodge-pt.com"

Minimum Plain Bore:

No

Mounting Method:

Bushed

Noun:

Pulley

Number of Teeth:

28

Other Features:

Hawk PD Belt Style / QD Bushing / Solid Style

Outside Diameter:

2.759 Inch / 70.08 Millimeter

Pitch Diameter:

2.807 Inch / 71.3 Millimeter

UNSPSC:

26111812

Weight / Kilogram:

0.499

Weight / LBS:

1.6
