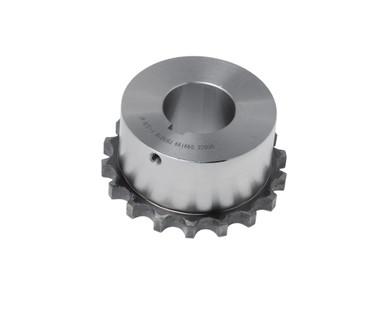

Dodge 099133 Chain Hub

Specs

Bore Profile:

Finished Bore

Bore:

0.875 Inch / 22.225 Millimeter

Brand:

DODGE

Bushing Size if bushed:

No Bushing

Category:

Chain Hub

Chain Number:

50

Component:

Hub

Coupling Size or Series:

5012

Coupling Type:

Chain Coupling

Distance Between Shaft Ends:

0.375 Inch / 9.525 Millimeter

EAN:

782475047123

Harmonized Tariff Code:

8483.90.80.10

Hub Diameter:

1.75 Inch / 44.45 Millimeter

Hub Type:

Shaft

Inch - Metric:

Inch

Keyway Yes/No:

Yes

Keyword String:

Coupling Chain

Length Thru Bore:

1.25 Inch / 31.75 Millimeter

Long Description:

7/8 Bore

Manufacturer Internal Number:

99133

Manufacturer Item Number:

FB5012 X 7/8 CHAIN CPLG FLG

Manufacturer Name:

ABB MOTORS AND MECHANICAL INC

Manufacturer URL:

http://www.dodge-pt.com

Maximum Speed RPM:

875

Noun:

Hub

Number of Teeth:

12

Other Features:

Components May or May Not Intermix Among Brands / Flange / Hardened Teeth

Outside Diameter:

2.75 Inch / 69.85 Millimeter

UNSPSC:

31163012

Weight / Kilogram:

0.363

Weight / LBS:

0.8

Width:

1.25 Inch / 31.75 Millimeter
