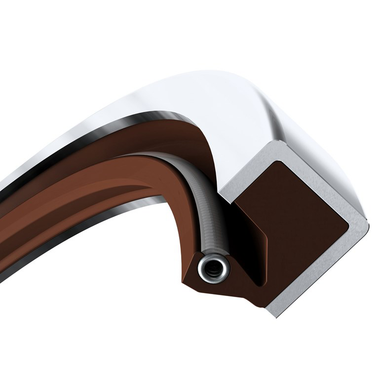

CR Seals 650X700X22 HDS2 V Oil Seal

Images may not be exact. Please refer to Part # and Description.

Quantity:

$4,855.08

CR Seals 650X700X22 HDS2 V Oil Seal Specifications

Actual Width:

0.866 Inch / 22 Millimeter
Brand:

SKF
Case Construction:

Steel
Category:

Oil Seals
EAN:

85311224178
Generic Design Code:

C_R_HDS2
Harmonized Tariff Code:

4016.93.50.20
Housing Bore:

27.559 Inch / 700 Millimeter
Inch - Metric:

Metric
Keyword String:

Lip
Lip Material:

Viton
Lip Retainer:

Stainless Steel Garter
Long Description:

650MM Shaft Dia; 700MM Housing Bore; 22MM Nominal Width; Viton Lip; Solid Seal; 22MM Actual Width; Spring Loaded; 1 Sealing Lips; Stainless Steel Garter Lip Retainer; Steel Case Construction; HDS2 Seal Design Code
Manufacturer Item Number:

650X700X22 HDS2 V
Manufacturer Name:

SKF
Nominal Width:

0.866 Inch / 22 Millimeter
Noun:

Seal
Other Features:

Large / With Inner Case / Heavy Duty / With Spring Lock and Spring-Cover
Seal Design Code:

HDS2
Shaft Diameter:

25.591 Inch / 650 Millimeter
Solid or Split Seal:

Solid
Spring Loaded:

Yes
Type of Seal:

Oil Seal
UNSPSC:

31411705
Weight / Kilogram:

5.385
Weight / LBS:

11.877
