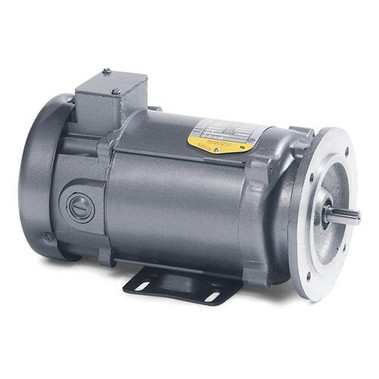

Baldor-Reliance VP3468-14 1.5HP/1.1KW/3000RPM/TEFC 34-6243Z178

  • SKUZM77WM
  • Brand
  • Manufacturer Part #VP3468-14
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$1,151.31

Baldor-Reliance VP3468-14 1.5HP/1.1KW/3000RPM/TEFC 34-6243Z178 Specifications

  • Armature Voltage:
    180 V"
  • Base Speed:
    3000 rpm
  • Enclosure:
    TEFC
  • Frame:
    D80C
  • Frame Material:
    Steel
  • Output Power:
    1.500 HP
  • XP Class and Group:
    None
  • Agency Approvals:
    CSA UR
  • Ambient Temperature:
    40 °C
  • Armature Current:
    7.7 a
  • Armature Inertia:
    12.486 lb-ft2
  • Base Indicator:
    Rigid
  • Bearing Grease Type:
    Polyrex EM (-20F +300F)
  • Drip Cover:
    No Drip Cover
  • Duty Rating:
    CONT
  • Feedback Device:
    NO FEEDBACK
  • Frame Prefix:
    D
  • Heater Indicator:
    No Heater
  • Insulation Class:
    F
  • Lifting Lugs:
    No Lifting Lugs
  • Motor Lead Exit:
    Ko Box
  • Motor Lead Termination:
    Flying Leads
  • Motor Lead Quantity/Wire Size:
    2 @ 14 AWG
  • Mounting Arrangement:
    B34
  • Overall Length:
    15.22 IN
  • Product Family:
    General Purpose
  • Pulley End Bearing Type:
    Sealed Bearing
  • Service Factor:
    1.00
  • Shaft Diameter:
    0.748 IN
  • Shaft Extension Location:
    Pulley End
  • Shaft Ground Indicator:
    No Shaft Grounding
  • Shaft Rotation:
    Reversible
  • Shaft Slinger Indicator:
    No Slinger
  • Motor Standards:
    IEC
  • XP Division:
    Not Applicable
