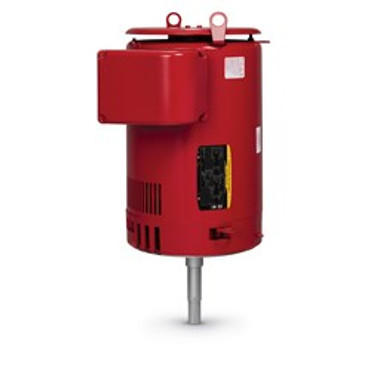

Baldor-Reliance VJPFPM2551T 75//60HP, 1770//1470RPM, 3PH, 60//50HZ, 365J

  • SKUKK24NL
  • BrandBaldor-Reliance
  • Manufacturer Part #VJPFPM2551T
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$8,945.39

Baldor-Reliance VJPFPM2551T 75//60HP, 1770//1470RPM, 3PH, 60//50HZ, 365J Specifications

  • Catalog Number:
    VJPFPM2551T"
  • Enclosure:
    OPSB
  • Frame:
    365JP
  • Frame Material:
    Steel
  • Frequency:
    50.00 Hz 60.00 Hz
  • Output @ Frequency:
    60.000 HP @ 50 HZ 75.000 HP @ 60 HZ
  • Phase:
    3
  • Synchronous Speed @ Frequency:
    1500 RPM @ 50 HZ
  • Voltage @ Frequency:
    460.0 V @ 60 HZ 380.0 V @ 50 HZ 230.0 V @ 60 HZ 190.0 V @ 50 HZ
  • Agency Approvals:
    CSA EEV UL
  • Ambient Temperature:
    40 °C
  • Auxillary Box:
    No Auxillary Box
  • Auxillary Box Lead Termination:
    None
  • Base Indicator:
    No Mounting
  • Bearing Grease Type:
    Polyrex EM (-20F +300F)
  • Blower:
    None
  • Current @ Voltage:
    87.000 A @ 460.0 V 84.000 A @ 380.0 V 174.000 A @ 230.0 V 168.000 A @ 190.0 V
  • Design Code:
    B
  • Drip Cover:
    Drip Cover
  • Duty Rating:
    CONT
  • Efficiency @ 100% Load:
    94.1 %
  • Electrically Isolated Bearing:
    Not Electrically Isolated
  • Feedback Device:
    NO FEEDBACK
  • High Voltage Full Load Amps:
    84.0 a
  • Front Face Code:
    Standard
  • Front Shaft Indicator:
    None
  • Heater Indicator:
    No Heater
  • Insulation Class:
    F
  • Inverter Code:
    Not Inverter
  • KVA Code:
    F
  • Lifting Lugs:
    Vertical Lifting Lugs
  • Locked Bearing Indicator:
    Locked Bearing
  • Motor Lead Exit:
    Ko Box
  • Motor Lead Termination:
    Flying Leads
  • Motor Lead Quantity/Wire Size:
    12 @ 8 AWG
  • Motor Type:
    4272M
  • Mounting Arrangement:
    F1
  • Number of Poles:
    4
  • Overall Length:
    34.50 IN
  • Power Factor:
    86
  • Product Family:
    Fire Pump Motor
  • Pulley End Bearing Type:
    Ball
  • Pulley Face Code:
    C-Face
  • Pulley Shaft Indicator:
    Tapped & Key
  • Rodent Screen:
    Included
  • Service Factor:
    1.15
  • Shaft Diameter:
    2.125 IN
  • Shaft Extension Location:
    Pulley End
  • Shaft Ground Indicator:
    No Shaft Grounding
  • Shaft Rotation:
    Reversible
  • Shaft Slinger Indicator:
    Shaft Slinger
  • Speed:
    1470 rpm 1770 rpm
  • Speed Code:
    Single Speed
  • Motor Standards:
    NEMA
  • Starting Method:
    Wye Start - Delta Run
  • Thermal Device - Bearing:
    None
  • Thermal Device - Winding:
    None
  • Vibration Sensor Indicator:
    No Vibration Sensor
  • Winding Thermal 1:
    None
  • Winding Thermal 2:
    None
