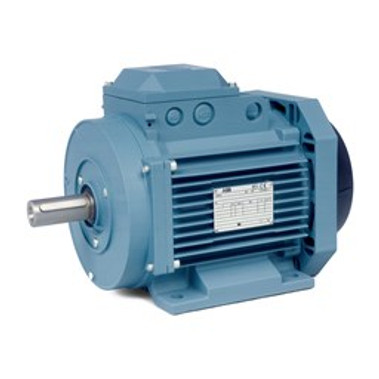

Baldor-Reliance MM20302-PPN M3BP 200 MLA 2P B3 30KW

  • SKUMP18YT
  • Brand
  • Manufacturer Part #MM20302-PPN
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$4,690.27

Baldor-Reliance MM20302-PPN M3BP 200 MLA 2P B3 30KW Specifications

  • Catalog Number:
    MM20302-PPN"
  • Frame:
    200
  • Frequency:
    50.00 Hz
  • Output @ Frequency:
    30.00 KW @ 50 HZ
  • Synchronous Speed @ Frequency:
    3000 RPM @ 50 HZ
  • Voltage @ Frequency:
    400 V @ 50 HZ 415 V @ 50 HZ 690 V @ 50 HZ
  • Ambient Temperature:
    40 °C
  • Auxillary Box:
    D-End Top
  • Current @ Voltage:
    29.90 A @ 690 V 49.70 A @ 415 V 51.60 A @ 400 V
  • Duty Rating:
    S1
  • High Voltage Full Load Amps:
    29.9 a
  • Insulation Class:
    F
  • IP Rating:
    IP55
  • Speed:
    2956 rpm 2960 rpm
  • Speed Code:
    Single Speed
  • Motor Standards:
    IEC
