Baldor-Reliance M3543-5 .75HP, 1140RPM, 3PH, 60HZ, 56H, 3428M, TEFC, F1

  • SKUUG96YO
  • Brand
  • Manufacturer Part #M3543-5
  • Available to Order

    Expected to Arrive ***

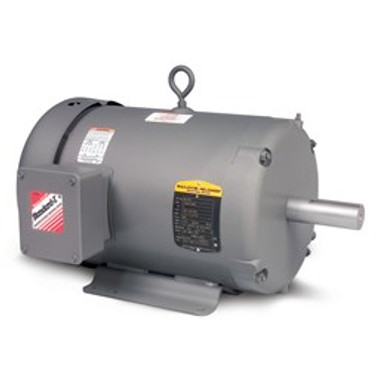

 Images may not be exact. Please refer to Part # and Description.

$618.34

Baldor-Reliance M3543-5 .75HP, 1140RPM, 3PH, 60HZ, 56H, 3428M, TEFC, F1 Specifications

  • Catalog Number:
    M3543-5"
  • Enclosure:
    TEFC
  • Frame:
    56H
  • Frame Material:
    Steel
  • Frequency:
    60.00 Hz
  • Output @ Frequency:
    .750 HP @ 60 HZ
  • Phase:
    3
  • Synchronous Speed @ Frequency:
    1200 RPM @ 60 HZ
  • Voltage @ Frequency:
    575.0 V @ 60 HZ
  • XP Class and Group:
    None
  • XP Division:
    Not Applicable
  • Agency Approvals:
    UR CSA
  • Ambient Temperature:
    40 °C
  • Auxillary Box:
    No Auxillary Box
  • Auxillary Box Lead Termination:
    None
  • Base Indicator:
    Rigid
  • Bearing Grease Type:
    Polyrex EM (-20F +300F)
  • Blower:
    None
  • Current @ Voltage:
    1.200 A @ 575.0 V
  • Design Code:
    B
  • Drip Cover:
    No Drip Cover
  • Duty Rating:
    CONT
  • Efficiency @ 100% Load:
    77.0 %
  • Electrically Isolated Bearing:
    Not Electrically Isolated
  • Feedback Device:
    NO FEEDBACK
  • High Voltage Full Load Amps:
    1.2 a
  • Front Face Code:
    Standard
  • Front Shaft Indicator:
    None
  • Heater Indicator:
    No Heater
  • Insulation Class:
    B
  • Inverter Code:
    Not Inverter
  • IP Rating:
    NONE
  • KVA Code:
    K
  • Lifting Lugs:
    No Lifting Lugs
  • Locked Bearing Indicator:
    No Locked Bearing
  • Motor Lead Exit:
    Ko Box
  • Motor Lead Termination:
    Flying Leads
  • Motor Lead Quantity/Wire Size:
    3 @ 18 AWG
  • Motor Type:
    3428M
  • Mounting Arrangement:
    F1
  • Number of Poles:
    6
  • Overall Length:
    12.84 IN
  • Power Factor:
    59
  • Product Family:
    General Purpose
  • Pulley End Bearing Type:
    Ball
  • Pulley Face Code:
    Standard
  • Pulley Shaft Indicator:
    Standard
  • Rodent Screen:
    None
  • Service Factor:
    1.15
  • Shaft Diameter:
    0.625 IN
  • Shaft Extension Location:
    Pulley End
  • Shaft Ground Indicator:
    No Shaft Grounding
  • Shaft Rotation:
    Reversible
  • Shaft Slinger Indicator:
    No Slinger
  • Speed:
    1140 rpm
  • Speed Code:
    Single Speed
  • Motor Standards:
    NEMA
  • Starting Method:
    Direct on line
  • Thermal Device - Bearing:
    None
  • Thermal Device - Winding:
    None
  • Vibration Sensor Indicator:
    No Vibration Sensor
  • Winding Thermal 1:
    None
  • Winding Thermal 2:
    None
