Baldor-Reliance JMFSWDM3709T-E 7.5HP, 3500RPM, 3PH, 60HZ, 213JM, 3734M, TEFC

  • SKUFD37NC
  • Brand
  • Manufacturer Part #JMFSWDM3709T-E
  • Available to Order

    Expected to Arrive ***

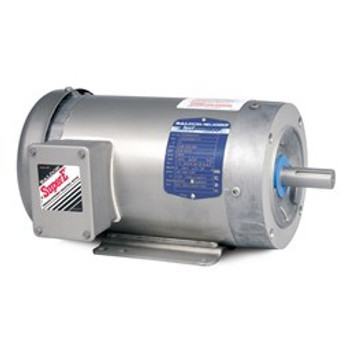

 Images may not be exact. Please refer to Part # and Description.

$3,895.94

Baldor-Reliance JMFSWDM3709T-E 7.5HP, 3500RPM, 3PH, 60HZ, 213JM, 3734M, TEFC Specifications

  • Catalog Number:
    JMFSWDM3709T-E"
  • Enclosure:
    TEFC
  • Frame:
    213JM
  • Frame Material:
    Stainless Steel
  • Frequency:
    60.00 Hz
  • Output @ Frequency:
    7.500 HP @ 60 HZ
  • Phase:
    3
  • Synchronous Speed @ Frequency:
    3600 RPM @ 60 HZ
  • Voltage @ Frequency:
    460.0 V @ 60 HZ 230.0 V @ 60 HZ
  • XP Class and Group:
    None
  • XP Division:
    Not Applicable
  • Agency Approvals:
    UR CSA EEV CSA
  • Ambient Temperature:
    40 °C
  • Auxillary Box:
    No Auxillary Box
  • Auxillary Box Lead Termination:
    None
  • Base Indicator:
    Rigid
  • Bearing Grease Type:
    Polyrex EM (-20F +300F)
  • Blower:
    None
  • Current @ Voltage:
    16.800 A @ 230.0 V 19.900 A @ 208.0 V 8.300 A @ 460.0 V
  • Design Code:
    A
  • Drip Cover:
    No Drip Cover
  • Duty Rating:
    CONT
  • Efficiency @ 100% Load:
    91.0 %
  • Electrically Isolated Bearing:
    Not Electrically Isolated
  • Feedback Device:
    NO FEEDBACK
  • High Voltage Full Load Amps:
    8.3 a
  • Front Face Code:
    Standard
  • Front Shaft Indicator:
    None
  • Heater Indicator:
    No Heater
  • Insulation Class:
    H
  • Inverter Code:
    Inverter Ready
  • KVA Code:
    K
  • Lifting Lugs:
    Standard Lifting Lugs
  • Locked Bearing Indicator:
    Locked Bearing
  • Motor Lead Exit:
    Ko Box
  • Motor Lead Termination:
    Flying Leads
  • Motor Lead Quantity/Wire Size:
    9 @ 14 AWG
  • Motor Type:
    3734M
  • Mounting Arrangement:
    F1
  • Number of Poles:
    2
  • Overall Length:
    20.62 IN
  • Power Factor:
    93
  • Product Family:
    WD All SS Encapsulated
  • Pulley End Bearing Type:
    Sealed Bearing
  • Pulley Face Code:
    C-Face
  • Pulley Shaft Indicator:
    Tapped & Key
  • Rodent Screen:
    None
  • RoHS Status:
    ROHS COMPLIANT
  • Service Factor:
    1.15
  • Shaft Diameter:
    0.875 IN
  • Shaft Extension Location:
    Pulley End
  • Shaft Ground Indicator:
    No Shaft Grounding
  • Shaft Rotation:
    Reversible
  • Shaft Slinger Indicator:
    No Slinger
  • Speed:
    3500 rpm
  • Speed Code:
    Single Speed
  • Motor Standards:
    NEMA
  • Starting Method:
    Direct on line
  • Thermal Device - Bearing:
    None
  • Thermal Device - Winding:
    None
  • Vibration Sensor Indicator:
    No Vibration Sensor
  • Winding Thermal 1:
    None
  • Winding Thermal 2:
    None
