Baldor-Reliance FPM2566TS-4 250/200HP, 60//50HZ, 4PL, 3PH, 445TS, OPEN

  • SKUSD29MN
  • Brand
  • Manufacturer Part #FPM2566TS-4
  • Available to Order

    Expected to Arrive ***

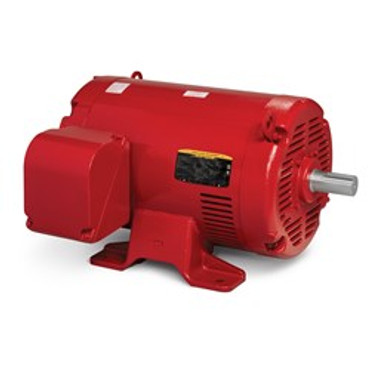

 Images may not be exact. Please refer to Part # and Description.

$16,730.97

Baldor-Reliance FPM2566TS-4 250/200HP, 60//50HZ, 4PL, 3PH, 445TS, OPEN Specifications

  • Catalog Number:
    FPM2566TS-4"
  • Enclosure:
    DP
  • Frame:
    445TS
  • Frame Material:
    Iron
  • Frequency:
    50.00 Hz 60.00 Hz
  • Output @ Frequency:
    250.000 HP @ 60 HZ 200.000 HP @ 50 HZ
  • Phase:
    3
  • Synchronous Speed @ Frequency:
    1800 RPM @ 60 HZ
  • Voltage @ Frequency:
    380.0 V @ 50 HZ 460.0 V @ 60 HZ
  • XP Class and Group:
    None
  • XP Division:
    Not Applicable
  • Agency Approvals:
    CCSA US CSA EEV UL
  • Ambient Temperature:
    40 °C
  • Auxillary Box:
    No Auxillary Box
  • Base Indicator:
    Rigid
  • Bearing Grease Type:
    Polyrex EM (-20F +300F)
  • Current @ Voltage:
    265.000 A @ 380.0 V 272.000 A @ 460.0 V
  • Design Code:
    B
  • Drip Cover:
    No Drip Cover
  • Duty Rating:
    CONT
  • Efficiency @ 100% Load:
    95.4 %
  • Feedback Device:
    NO FEEDBACK
  • High Voltage Full Load Amps:
    265.0 a
  • Heater Indicator:
    No Heater
  • Insulation Class:
    F
  • Inverter Code:
    Not Inverter
  • KVA Code:
    F
  • Lifting Lugs:
    No Lifting Lugs
  • Motor Lead Quantity/Wire Size:
    12 @ 4 AWG
  • Motor Type:
    A44072M
  • Mounting Arrangement:
    F1
  • Number of Poles:
    4
  • Overall Length:
    35.88 IN
  • Power Factor:
    90
  • Pulley End Bearing Type:
    Ball
  • Pulley Face Code:
    Standard
  • Service Factor:
    1.15
  • Shaft Diameter:
    2.375 IN
  • Shaft Ground Indicator:
    No Shaft Grounding
  • Shaft Rotation:
    Reversible
  • Shaft Slinger Indicator:
    No Slinger
  • Speed:
    1475 rpm 1770 rpm
  • Speed Code:
    Single Speed
  • Motor Standards:
    NEMA
  • Starting Method:
    Wye Start - Delta Run
  • Thermal Device - Bearing:
    None
  • Thermal Device - Winding:
    None
