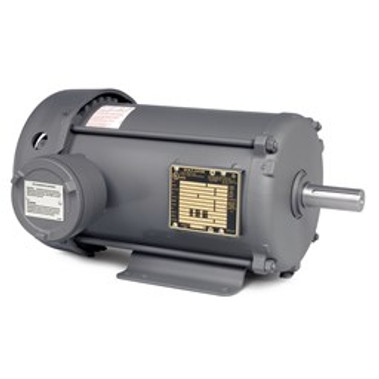

Baldor-Reliance EM7014T-I 1//.75HP, 1760//1460RPM, 3PH, 60//50HZ, 143T

  • SKUQD28YB
  • Brand
  • Manufacturer Part #EM7014T-I
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$1,054.10

Baldor-Reliance EM7014T-I 1//.75HP, 1760//1460RPM, 3PH, 60//50HZ, 143T Specifications

  • Catalog Number:
    EM7014T-I"
  • Enclosure:
    XPFC
  • Frame:
    143T
  • Frame Material:
    Steel
  • Frequency:
    50.00 Hz 60.00 Hz
  • Output @ Frequency:
    1.000 HP @ 60 HZ .750 HP @ 50 HZ
  • Phase:
    3
  • Synchronous Speed @ Frequency:
    1500 RPM @ 50 HZ
  • Voltage @ Frequency:
    230.0 V @ 60 HZ 190.0 V @ 50 HZ 460.0 V @ 60 HZ 380.0 V @ 50 HZ
  • XP Class and Group:
    CLI GP C,D
  • XP Division:
    Division I
  • Agency Approvals:
    UR UL CSA EEV CSA
  • Ambient Temperature:
    40 °C
  • Auxillary Box:
    No Auxillary Box
  • Auxillary Box Lead Termination:
    None
  • Base Indicator:
    Rigid
  • Bearing Grease Type:
    Polyrex EM (-20F +300F)
  • Blower:
    None
  • Current @ Voltage:
    3.100 A @ 208.0 V 3.000 A @ 230.0 V 2.800 A @ 190.0 V 1.500 A @ 460.0 V 1.400 A @ 380.0 V
  • Design Code:
    B
  • Drip Cover:
    No Drip Cover
  • Duty Rating:
    CONT
  • Efficiency @ 100% Load:
    85.5 %
  • Electrically Isolated Bearing:
    Not Electrically Isolated
  • Feedback Device:
    NO FEEDBACK
  • High Voltage Full Load Amps:
    1.4 a
  • Front Face Code:
    Standard
  • Front Shaft Indicator:
    None
  • Heater Indicator:
    No Heater
  • Insulation Class:
    F
  • Inverter Code:
    Not Inverter
  • KVA Code:
    L
  • Lifting Lugs:
    No Lifting Lugs
  • Locked Bearing Indicator:
    No Locked Bearing
  • Motor Lead Exit:
    Ko Box
  • Motor Lead Termination:
    Flying Leads
  • Motor Lead Quantity/Wire Size:
    9 @ 18 AWG
  • Motor Type:
    X3520M
  • Mounting Arrangement:
    F1
  • Number of Poles:
    4
  • Overall Length:
    14.22 IN
  • Power Factor:
    71
  • Product Family:
    Hazardous Location Motor
  • Pulley End Bearing Type:
    Ball
  • Pulley Face Code:
    Standard
  • Pulley Shaft Indicator:
    Standard
  • Rodent Screen:
    None
  • RoHS Status:
    ROHS COMPLIANT
  • Service Factor:
    1.15
  • Shaft Diameter:
    0.875 IN
  • Shaft Extension Location:
    Pulley End
  • Shaft Ground Indicator:
    No Shaft Grounding
  • Shaft Rotation:
    Reversible
  • Shaft Slinger Indicator:
    No Slinger
  • Speed:
    1460 rpm 1760 rpm
  • Speed Code:
    Single Speed
  • Motor Standards:
    NEMA
  • Starting Method:
    Direct on line
  • Thermal Device - Bearing:
    None
  • Thermal Device - Winding:
    Normally Closed Thermostat
  • Vibration Sensor Indicator:
    No Vibration Sensor
  • Winding Thermal 1:
    None
  • Winding Thermal 2:
    None
  • XP Temp Code:
    T3C
