Baldor-Reliance EM4308T-G 40HP, 1200RPM, 60HZ, 364T, TEFC

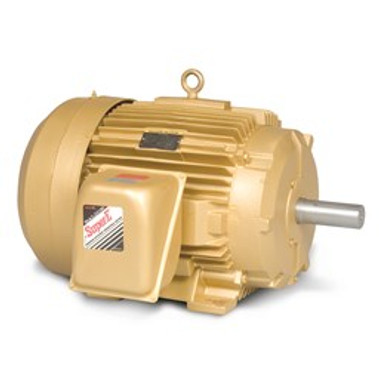

Images may not be exact. Please refer to Part # and Description.

Quantity:

$9,503.66

Baldor-Reliance EM4308T-G 40HP, 1200RPM, 60HZ, 364T, TEFC Specifications

Catalog Number:

EM4308T-G"
Enclosure:

TEFC
Frame:

364T
Frame Material:

Iron
Frequency:

50.00 Hz 60.00 Hz
Output @ Frequency:

40.000 HP @ 60 HZ 30.000 HP @ 50 HZ
Phase:

3
Synchronous Speed @ Frequency:

1200 RPM @ 60 HZ
Voltage @ Frequency:

190.0 V @ 50 HZ 230.0 V @ 60 HZ 380.0 V @ 50 HZ 460.0 V @ 60 HZ
XP Class and Group:

None
XP Division:

Not Applicable
Agency Approvals:

UR
Ambient Temperature:

40 °C
Auxillary Box:

No Auxillary Box
Base Indicator:

Rigid
Bearing Grease Type:

Polyrex EM (-20F +300F)
Current @ Voltage:

106.000 A @ 208.0 V
Design Code:

B
Drip Cover:

No Drip Cover
Duty Rating:

CONT
Efficiency @ 100% Load:

94.1 %
Feedback Device:

NO FEEDBACK
High Voltage Full Load Amps:

45.6 a
Heater Indicator:

No Heater
Insulation Class:

H
Inverter Code:

Inverter Ready
IP Rating:

NONE
KVA Code:

G
Lifting Lugs:

Standard Lifting Lugs
Max Speed:

1800 rpm
Motor Lead Quantity/Wire Size:

3 @ 4 AWG
Motor Type:

A3662M
Mounting Arrangement:

F1
Number of Poles:

6
Overall Length:

33.48 IN
Power Factor:

80
Product Family:

General Industrial
Pulley End Bearing Type:

Ball
Pulley Face Code:

Standard
Service Factor:

1.15
Shaft Diameter:

2.374 IN
Shaft Ground Indicator:

Shaft Grounding
Shaft Rotation:

Reversible
Shaft Slinger Indicator:

No Slinger
Speed:

1190 rpm 990 rpm
Speed Code:

Single Speed
Motor Standards:

NEMA
Starting Method:

Direct on line
Thermal Device - Bearing:

None
Thermal Device - Winding:

None
