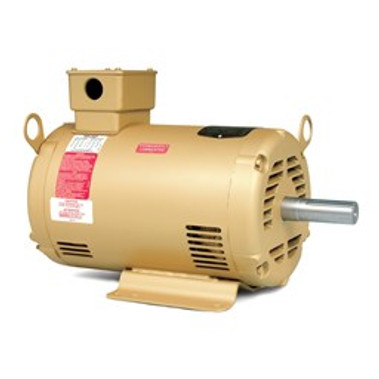

Baldor-Reliance EHM3218TA 5HP, 1750RPM, 3PH, 60HZ, 184T, 3640M, OPSB, F3

  • SKUOD39BM
  • Brand
  • Manufacturer Part #EHM3218TA
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$1,112.39

Baldor-Reliance EHM3218TA 5HP, 1750RPM, 3PH, 60HZ, 184T, 3640M, OPSB, F3 Specifications

  • Catalog Number:
    EHM3218TA"
  • Enclosure:
    OPSB
  • Frame:
    184T
  • Frame Material:
    Steel
  • Frequency:
    60.00 Hz
  • Output @ Frequency:
    5.000 HP @ 60 HZ
  • Phase:
    3
  • Synchronous Speed @ Frequency:
    1800 RPM @ 60 HZ
  • Voltage @ Frequency:
    460.0 V @ 60 HZ 230.0 V @ 60 HZ
  • XP Class and Group:
    None
  • XP Division:
    Not Applicable
  • Agency Approvals:
    UR CSA EEV CSA
  • Ambient Temperature:
    40 °C
  • Auxillary Box:
    No Auxillary Box
  • Auxillary Box Lead Termination:
    None
  • Base Indicator:
    Rigid
  • Bearing Grease Type:
    Polyrex EM (-20F +300F)
  • Blower:
    None
  • Current @ Voltage:
    13.200 A @ 230.0 V 14.000 A @ 208.0 V 6.600 A @ 460.0 V
  • Design Code:
    B
  • Drip Cover:
    No Drip Cover
  • Duty Rating:
    CONT
  • Efficiency @ 100% Load:
    89.5 %
  • Electrically Isolated Bearing:
    Not Electrically Isolated
  • Feedback Device:
    NO FEEDBACK
  • High Voltage Full Load Amps:
    6.6 a
  • Front Face Code:
    Standard
  • Front Shaft Indicator:
    None
  • Heater Indicator:
    No Heater
  • Insulation Class:
    F
  • Inverter Code:
    Inverter Ready
  • KVA Code:
    J
  • Lifting Lugs:
    No Lifting Lugs
  • Locked Bearing Indicator:
    No Locked Bearing
  • Motor Lead Exit:
    Ko Box
  • Motor Lead Termination:
    Flying Leads
  • Motor Lead Quantity/Wire Size:
    12 @ 16 AWG
  • Motor Type:
    3640M
  • Mounting Arrangement:
    F3
  • Number of Poles:
    4
  • Overall Length:
    16.50 IN
  • Power Factor:
    80
  • Product Family:
    General Purpose
  • Pulley End Bearing Type:
    Ball
  • Pulley Face Code:
    Standard
  • Pulley Shaft Indicator:
    Standard
  • Rodent Screen:
    None
  • Service Factor:
    1.15
  • Shaft Diameter:
    1.125 IN
  • Shaft Extension Location:
    Pulley End
  • Shaft Ground Indicator:
    No Shaft Grounding
  • Shaft Rotation:
    Reversible
  • Shaft Slinger Indicator:
    No Slinger
  • Speed:
    1750 rpm
  • Speed Code:
    Single Speed
  • Motor Standards:
    NEMA
  • Starting Method:
    Direct on line
  • Thermal Device - Bearing:
    None
  • Thermal Device - Winding:
    Do Not Use Eve-Not Valiid
  • Vibration Sensor Indicator:
    No Vibration Sensor
  • Winding Thermal 1:
    Automatic Thermal Overload
  • Winding Thermal 1 Location:
    KO
  • Winding Thermal 2:
    None
