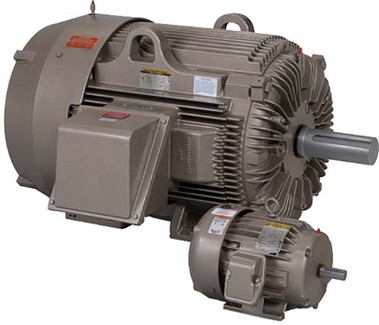

Baldor-Reliance ECR93504T-4 350HP, 1785RPM, 3PH, 60HZ, 449T, A44160M, TEFC

  • SKUCJ82KZ
  • BrandBaldor-Reliance
  • Manufacturer Part #ECR93504T-4
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$41,248.01

Baldor-Reliance ECR93504T-4 350HP, 1785RPM, 3PH, 60HZ, 449T, A44160M, TEFC Specifications

  • Catalog Number:
    ECR93504T-4"
  • Enclosure:
    TEFC
  • Frame:
    449T
  • Frame Material:
    Iron
  • Frequency:
    60.00 Hz
  • Output @ Frequency:
    350.000 HP @ 60 HZ
  • Phase:
    3
  • Synchronous Speed @ Frequency:
    1800 RPM @ 60 HZ
  • Voltage @ Frequency:
    460.0 V @ 60 HZ
  • XP Class and Group:
    None
  • XP Division:
    Not Applicable
  • Agency Approvals:
    CSA EEV
  • Ambient Temperature:
    40 °C
  • Auxillary Box:
    No Auxillary Box
  • Base Indicator:
    Rigid
  • Bearing Grease Type:
    Polyrex EM (-20F +300F)
  • Constant Torque Speed Range:
    30-60
  • Current @ Voltage:
    390.000 A @ 460.0 V
  • Design Code:
    A
  • Drip Cover:
    No Drip Cover
  • Duty Rating:
    CONT
  • Efficiency @ 100% Load:
    96.2 %
  • Feedback Device:
    NO FEEDBACK
  • High Voltage Full Load Amps:
    390.0 a
  • Heater Indicator:
    No Heater
  • Insulation Class:
    F
  • Inverter Code:
    Inverter Ready
  • KVA Code:
    H
  • Lifting Lugs:
    No Lifting Lugs
  • Max Speed:
    3600 rpm
  • Motor Lead Quantity/Wire Size:
    12 @ 1 AWG
  • Motor Type:
    A44160M
  • Mounting Arrangement:
    F1
  • Number of Poles:
    4
  • Overall Length:
    53.24 IN
  • Power Factor:
    87
  • Product Family:
    Crusher / Chipper
  • Pulley End Bearing Type:
    Ball
  • Pulley Face Code:
    Standard
  • Service Factor:
    1.15
  • Shaft Diameter:
    3.375 IN
  • Shaft Ground Indicator:
    No Shaft Grounding
  • Shaft Rotation:
    Reversible
  • Shaft Slinger Indicator:
    Shaft Slinger
  • Speed:
    1785 rpm
  • Speed Code:
    Single Speed
  • Motor Standards:
    NEMA
  • Starting Method:
    Direct on line
  • Thermal Device - Bearing:
    None
  • Thermal Device - Winding:
    None
