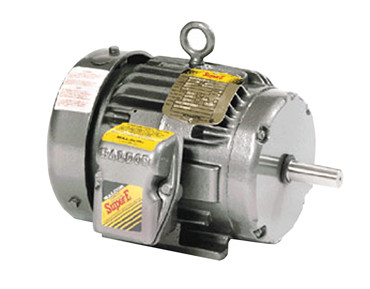

Baldor-Reliance ECP3663T-4 5HP, 3500RPM, 3PH, 60HZ, 184T, 0634M, TEFC, F1

  • SKUWX99NI
  • Brand
  • Manufacturer Part #ECP3663T-4
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$1,697.75

Baldor-Reliance ECP3663T-4 5HP, 3500RPM, 3PH, 60HZ, 184T, 0634M, TEFC, F1 Specifications

  • Catalog Number:
    ECP3663T-4"
  • Enclosure:
    TEFC
  • Frame:
    184T
  • Frame Material:
    Iron
  • Frequency:
    60.00 Hz
  • Output @ Frequency:
    5.000 HP @ 60 HZ
  • Phase:
    3
  • Synchronous Speed @ Frequency:
    3600 RPM @ 60 HZ
  • Voltage @ Frequency:
    460.0 V @ 60 HZ
  • XP Class and Group:
    CLI GP A,B,C,D
  • XP Division:
    Division II
  • Agency Approvals:
    CSA EEV UR CSA CCSA US
  • Ambient Temperature:
    40 °C
  • Auxillary Box:
    No Auxillary Box
  • Auxillary Box Lead Termination:
    None
  • Base Indicator:
    Rigid
  • Bearing Grease Type:
    Polyrex EM (-20F +300F)
  • Blower:
    None
  • Constant Torque Speed Range:
    6
  • Current @ Voltage:
    5.700 A @ 460.0 V
  • Design Code:
    A
  • Drip Cover:
    No Drip Cover
  • Duty Rating:
    CONT
  • Efficiency @ 100% Load:
    89.5 %
  • Electrically Isolated Bearing:
    Not Electrically Isolated
  • Enclosure Modification:
    Severe Duty Features
  • Feedback Device:
    NO FEEDBACK
  • High Voltage Full Load Amps:
    5.7 a
  • Front Face Code:
    Standard
  • Front Shaft Indicator:
    None
  • Heater Indicator:
    No Heater
  • Insulation Class:
    F
  • Inverter Code:
    Inverter Ready
  • KVA Code:
    L
  • Lifting Lugs:
    Standard Lifting Lugs
  • Locked Bearing Indicator:
    No Locked Bearing
  • Max Speed:
    5400 rpm
  • Motor Lead Exit:
    Ko Box
  • Motor Lead Termination:
    Flying Leads
  • Motor Lead Quantity/Wire Size:
    3 @ 16 AWG
  • Motor Type:
    0634M
  • Mounting Arrangement:
    F1
  • Number of Poles:
    2
  • Overall Length:
    15.93 IN
  • Power Factor:
    90
  • Product Family:
    Chemical Processing (Not DC)
  • Pulley End Bearing Type:
    Ball
  • Pulley Face Code:
    Standard
  • Pulley Shaft Indicator:
    Standard
  • Rodent Screen:
    None
  • Service Factor:
    1.15
  • Shaft Diameter:
    1.125 IN
  • Shaft Extension Location:
    Pulley End
  • Shaft Ground Indicator:
    No Shaft Grounding
  • Shaft Rotation:
    Reversible
  • Shaft Slinger Indicator:
    Shaft Slinger
  • Speed:
    3500 rpm
  • Speed Code:
    Single Speed
  • Motor Standards:
    NEMA
  • Starting Method:
    Direct on line
  • Thermal Device - Bearing:
    None
  • Thermal Device - Winding:
    None
  • Vibration Sensor Indicator:
    No Vibration Sensor
  • Winding Thermal 1:
    None
  • Winding Thermal 2:
    None
  • XP Temp Code:
    T3C
