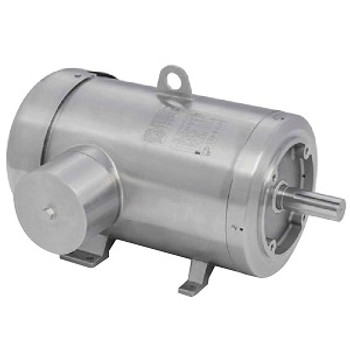

Baldor-Reliance CEWDM4100T 15HP, 1180RPM, 3PH, 60HZ, 284TC, TEFC, F1

  • SKUSX35LX
  • Brand
  • Manufacturer Part #EWDM4100T
  • Available to Order

    Expected to Arrive ***


$4,838.46

Baldor-Reliance CEWDM4100T 15HP, 1180RPM, 3PH, 60HZ, 284TC, TEFC, F1 Specifications

  • Catalog Number:
    CEWDM4100T"
  • Enclosure:
    TEFC
  • Frame:
    284TC
  • Frame Material:
    Iron
  • Frequency:
    60.00 Hz
  • Output @ Frequency:
    15.000 HP @ 60 HZ
  • Phase:
    3
  • Synchronous Speed @ Frequency:
    1200 RPM @ 60 HZ
  • Voltage @ Frequency:
    460.0 V @ 60 HZ 230.0 V @ 60 HZ
  • XP Class and Group:
    None
  • XP Division:
    Not Applicable
  • Agency Approvals:
    CSA CSA EEV UR
  • Ambient Temperature:
    40 °C
  • Auxillary Box:
    No Auxillary Box
  • Auxillary Box Lead Termination:
    None
  • Base Indicator:
    Rigid
  • Bearing Grease Type:
    Polyrex EM (-20F +300F)
  • Blower:
    None
  • Current @ Voltage:
    19.400 A @ 460.0 V 38.800 A @ 230.0 V
  • Design Code:
    B
  • Drip Cover:
    No Drip Cover
  • Duty Rating:
    CONT
  • Efficiency @ 100% Load:
    91.7 %
  • Electrically Isolated Bearing:
    Not Electrically Isolated
  • Enclosure Modification:
    Severe Duty Features
  • Feedback Device:
    NO FEEDBACK
  • High Voltage Full Load Amps:
    19.4 a
  • Heater Indicator:
    No Heater
  • Insulation Class:
    F
  • Inverter Code:
    Inverter Duty
  • IP Rating:
    IP55
  • KVA Code:
    G
  • Lifting Lugs:
    Standard Lifting Lugs
  • Locked Bearing Indicator:
    Locked Bearing
  • Max Speed:
    1800 rpm
  • Motor Lead Termination:
    Flying Leads
  • Motor Type:
    1054M
  • Mounting Arrangement:
    F1
  • Number of Poles:
    6
  • Overall Length:
    27.56 IN
  • Power Factor:
    77
  • Product Family:
    Washdown Features
  • Pulley Face Code:
    C-Face
  • Rodent Screen:
    None
  • Service Factor:
    1.00
  • Shaft Diameter:
    1.875 IN
  • Shaft Ground Indicator:
    No Shaft Grounding
  • Shaft Rotation:
    Reversible
  • Speed:
    1180 rpm
  • Speed Code:
    Single Speed
  • Motor Standards:
    NEMA
  • Starting Method:
    Direct on line
  • Thermal Device - Bearing:
    None
  • Thermal Device - Winding:
    None
  • Vibration Sensor Indicator:
    No Vibration Sensor
  • Winding Thermal 1:
    None
  • Winding Thermal 2:
    None
